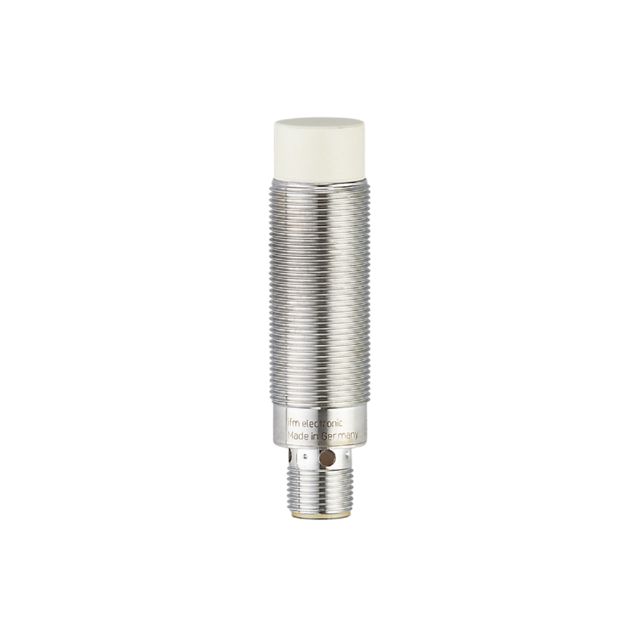

ifm IGM205, Inductive Threaded Barrel Proximity Sensor, M18, 12 mm Detection, PNP NO, 10 → 60 V dc

Name: ifm IGM205, Inductive Threaded Barrel Proximity Sensor, M18, 12 mm Detection, PNP NO, 10 → 60 V dc
Brand: ifm
SKU: IGM205
Availability: OutOfStock

Part Number : IGM205

Availability: Sold out

Detailed Description
Specifications

The ifm electronic inductive sensor designed for robust performance in challenging environments. With its stainless steel housing and IP67/IP69K protection class, this sensor is built to withstand both dust and water ingress, making it ideal for mobile and harsh applications. The ingenious design features gold-plated contacts for enhanced durability and an increased sensing range, allowing for greater operational flexibility. Its high precision and reliability, combined with a wide ambient temperature range of -40 to +85 degrees Celsius, make it an essential component in automotive and industrial sectors. The sensor’s PNP electrical design contributes to its efficiency and ease of integration into various systems, ensuring optimal performance across applications.

E1 type approval by the Kraftfahrt-Bundesamt (German Federal Motor Transport Authority)
Wide operating temperature range
High ingress protection for the requirements of harsh environmental conditions
High EMC resistance according to automotive standards
Large operating voltage range

Brand	ifm
Thread Size	M18
Sensor Technology	Inductive
Detection Range	12 mm
Body Style	Threaded Barrel
Digital Switching Output Type	PNP
Output Function	NO
Connection Type	M12
Supply Voltage	10 → 60 V dc
IP Rating	IP67, IP69K
Length	70mm
Mounting Type	Non-Flush
Shielding	Unshielded
Switching Frequency	200 Hz
Switching Current	200 mA
Series	IGM
