ifm IGS002, Inductive Threaded Barrel Proximity Sensor, M18, 12 mm Detection, 2-Wire NO, 20 → 140 V ac/dc, 20

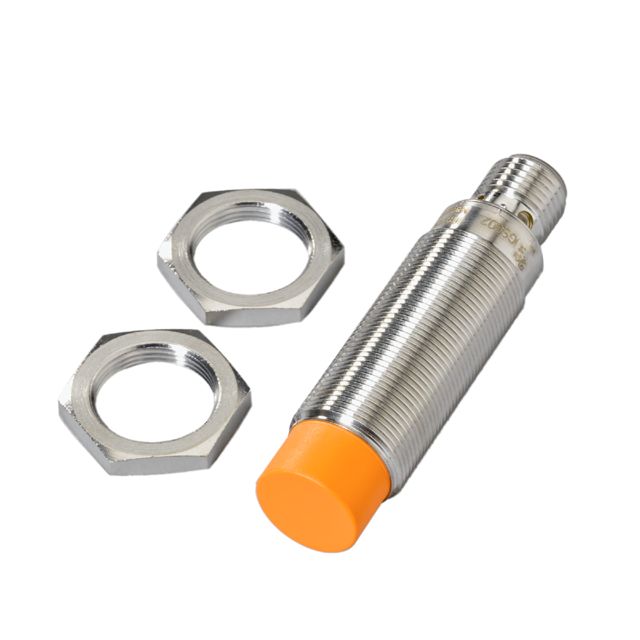

Name: ifm IGS002, Inductive Threaded Barrel Proximity Sensor, M18, 12 mm Detection, 2-Wire NO, 20 → 140 V ac/dc, 20
Brand: ifm
SKU: IGS002
Availability: OutOfStock

Part Number : IGS002

Availability: Sold out

Detailed Description
Specifications

The ifm electronic inductive sensor, expertly crafted, is designed to meet the demands of industrial applications and factory automation. With a robust threaded housing and an exceptional sensing range of 12 mm, this sensor is built for reliability and precision. Equipped with gold-plated contacts and reverse polarity protection, it ensures optimal performance in various environments. This sensor not only excels in operational efficiency but also offers increased protection and outstanding durability under challenging conditions. The compact dimensions allow for easy integration into diverse systems, making it an ideal choice for professionals seeking high-quality sensing solutions.

With combined AC/DC output stage
Two-wire technology
Robust metal housing for use in harsh industrial environments
Clearly visible indication of the switching status
Long sensing range for high uptime

Brand	ifm
Thread Size	M18
Sensor Technology	Inductive
Detection Range	12 mm
Body Style	Threaded Barrel
Digital Switching Output Type	2-Wire
Output Function	NO
Connection Type	1/2"20 UNF
Supply Voltage	20 → 140 V ac/dc, 20 → 140 V ac/dc
Length	70mm
IP Rating	IP67
Mounting Type	Non-Flush
Shielding	Unshielded
Switching Current	200 mA
Switching Frequency	25 Hz
Series	IGS
