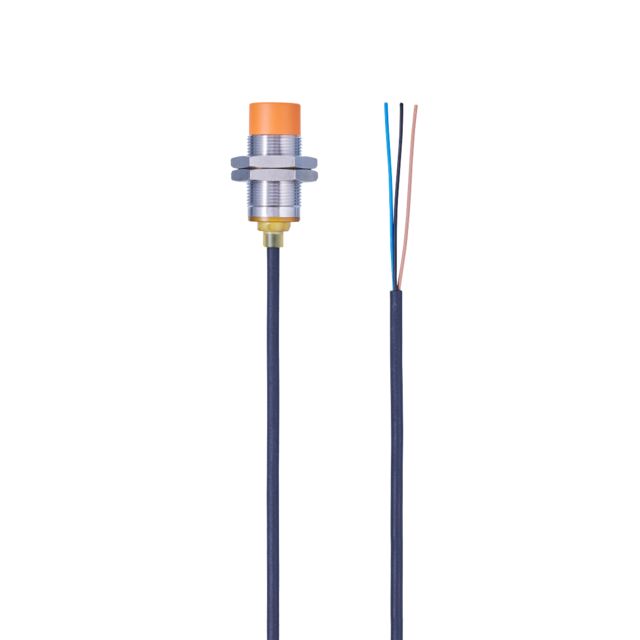

ifm IGS249, Inductive Threaded Barrel Proximity Sensor, M18, 12 mm Detection, PNP NO, 10 → 30 V dc

Part Number : IGS249

Availability: low stock

Detailed Description
Specifications
Downloads

The ifm electronic Inductive Sensor offers a reliable and efficient solution for industrial and mobile applications. Engineered with advanced PNP technology, it ensures optimal performance with a sensing range of up to 12 mm. The sensor’s robust design withstands a wide range of environmental conditions, making it suitable for factory automation and demanding applications. Its enhanced sensing capabilities and high protection class ratings ensure durability, while the straightforward installation process allows for quick deployment.

Suitable for industrial, mobile, cooling and lubricating applications
High protection rating for the requirements of harsh industrial environments
Flexible use thanks to large operating temperature range
Safe detection due to large sensing range and low sensor tolerances
Reduced storage due to wide range of applications

Brand	ifm
Thread Size	M18
Sensor Technology	Inductive
Body Style	Threaded Barrel
Detection Range	12 mm
Digital Switching Output Type	PNP
Output Function	NO
Connection Type	Pre-Cabled
Cable Length	2m
Supply Voltage	10 → 30 V dc
IP Rating	IP65, IP66, IP67, IP68, IP69K
Length	40mm
Mounting Type	Non-Flush
Series	IGS
Shielding	Unshielded
Switching Frequency	300 Hz
Switching Current	100 mA
