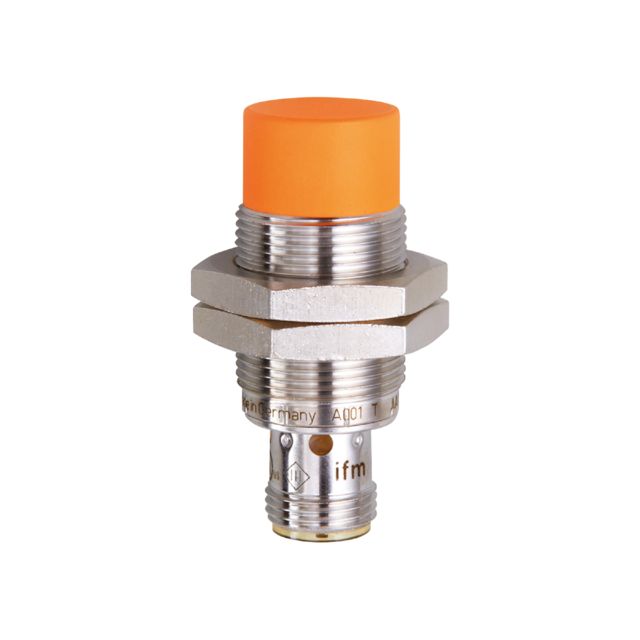

ifm IGS253, Inductive Threaded Barrel Proximity Sensor, M18, 12 mm Detection, PNP NC, 10 → 30 V dc

Name: ifm IGS253, Inductive Threaded Barrel Proximity Sensor, M18, 12 mm Detection, PNP NC, 10 → 30 V dc
Brand: ifm
SKU: IGS253
Availability: InStock

Part Number : IGS253

Availability: low stock

Detailed Description
Specifications
Downloads

The ifm electronic Inductive Sensor is designed to deliver reliable and efficient performance in various industrial applications. With its rugged construction, it excels in harsh environments, ensuring consistency and durability. The innovative sensing technology provides a reliable detection range of 12 mm while maintaining a compact threaded housing that facilitates easy integration into existing systems. The sensor supports extensive operating conditions, ranging from -40 to 85°C, making it suitable for both mobile and stationary applications.

Suitable for industrial, mobile, cooling and lubricating applications
High protection rating for the requirements of harsh industrial environments
Flexible use thanks to large operating temperature range
Safe detection due to large sensing range and low sensor tolerances
Reduced storage due to wide range of applications

Brand	ifm
Thread Size	M18
Sensor Technology	Inductive
Detection Range	12 mm
Body Style	Threaded Barrel
Digital Switching Output Type	PNP
Output Function	NC
Connection Type	M12
Supply Voltage	10 → 30 V dc
IP Rating	IP65, IP66, IP67, IP68, IP69K
Length	45mm
Mounting Type	Non-Flush
Shielding	Unshielded
Switching Current	100 mA
Series	IGS
Switching Frequency	300 Hz

ifm IGS253, Inductive Threaded Barrel Proximity Sensor, M18, 12 mm Detection, PNP NC, 10 → 30 V dc

DOWNLOAD CATALOG
