ifm IGS340, Inductive Threaded Barrel Proximity Sensor, M18, 10 mm Detection, PNP NO+NC, 10 → 30 V dc

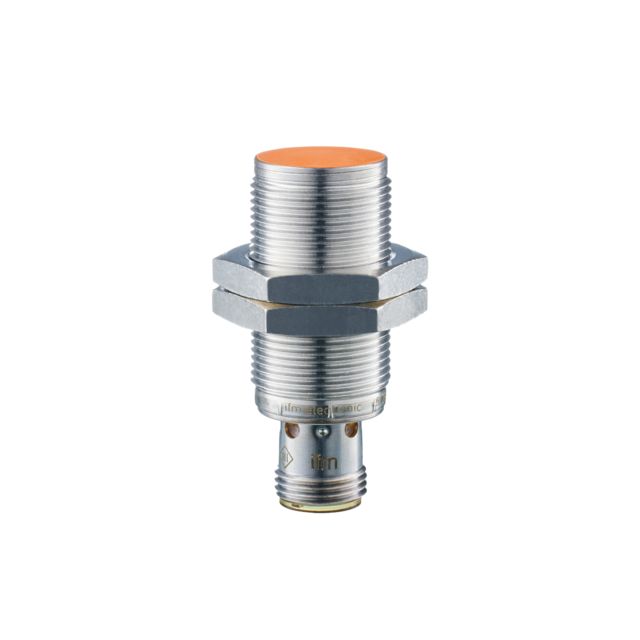

Name: ifm IGS340, Inductive Threaded Barrel Proximity Sensor, M18, 10 mm Detection, PNP NO+NC, 10 → 30 V dc
Brand: ifm
SKU: IGS340
Availability: OutOfStock

Part Number : IGS340

Availability: Sold out

Detailed Description
Specifications

The ifm electronic Inductive Sensor delivers exceptional performance in a range of industrial applications. Designed for demanding environments, its advanced features ensure reliable and precise detection of metallic objects. With a sensing range of up to 10 mm, this robust device is ideal for factory automation and mobile applications, offering increased sensing range capabilities. The thoughtful design includes gold plated contacts and robust materials, ensuring longevity and optimal performance even in challenging conditions.

Suitable for industrial, mobile, cooling and lubricating applications
High protection rating for the requirements of harsh industrial environments
Flexible use thanks to large operating temperature range
Safe detection due to large sensing range and low sensor tolerances
Reduced storage due to wide range of applications

Brand	ifm
Thread Size	M18
Sensor Technology	Inductive
Detection Range	10 mm
Body Style	Threaded Barrel
Digital Switching Output Type	PNP
Output Function	NO+NC
Connection Type	M12
Supply Voltage	10 → 30 V dc
IP Rating	IP65, IP66, IP67, IP68, IP69K
Length	45mm
Mounting Type	Quasi-Flush
Switching Frequency	500 Hz
Series	IGS
Shielding	Shielded
Switching Current	100 mA
