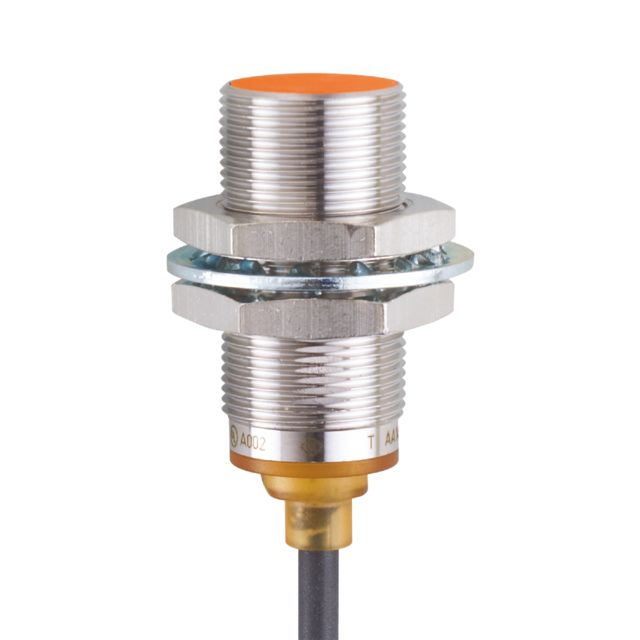

Name: ifm IGS710, Inductive Threaded Barrel Proximity Sensor, M18, 8 mm Detection, PNP/NPN NO, 10 → 30 V dc
Brand: ifm
SKU: IGS710
Availability: InStock

ifm IGS710, Inductive Threaded Barrel Proximity Sensor, M18, 8 mm Detection, PNP/NPN NO, 10 → 30 V dc - generaltechuae

Client Protection

Dedicated Support

Client Protection

Dedicated Support

ifm IGS710, Inductive Threaded Barrel Proximity Sensor, M18, 8 mm Detection, PNP/NPN NO, 10 → 30 V dc

Part Number : IGS710

Availability: low stock

Detailed Description
Specifications
Downloads

The ifm electronic Inductive Sensor is designed for industrial applications with a focus on reliability and performance. Featuring a robust threaded housing, it is well suited for demanding conditions, boasting an impressive ambient temperature range and multiple protection classes. With high accuracy and a sensing range optimised for efficiency, this sensor excels in factory automation environments. The unique drag chain suitability enhances its durability during flexible use, making it a dependable choice for various installations.

Suitable for industrial, mobile, cooling and lubricating applications
High protection rating for the requirements of harsh industrial environments
Flexible use thanks to large operating temperature range
Safe detection due to large sensing range and low sensor tolerances
Reduced storage due to wide range of applications

Brand	ifm
Thread Size	M18
Sensor Technology	Inductive
Detection Range	8 mm
Body Style	Threaded Barrel
Output Function	NO
Digital Switching Output Type	PNP/NPN
Connection Type	Pre-Cabled
Cable Length	2m
Supply Voltage	10 → 30 V dc
Length	40mm
IP Rating	IP65, IP66, IP67, IP68, IP69K
Mounting Type	Flush
Shielding	Unshielded
Series	IGS
Switching Current	100 mA
Switching Frequency	400 Hz
