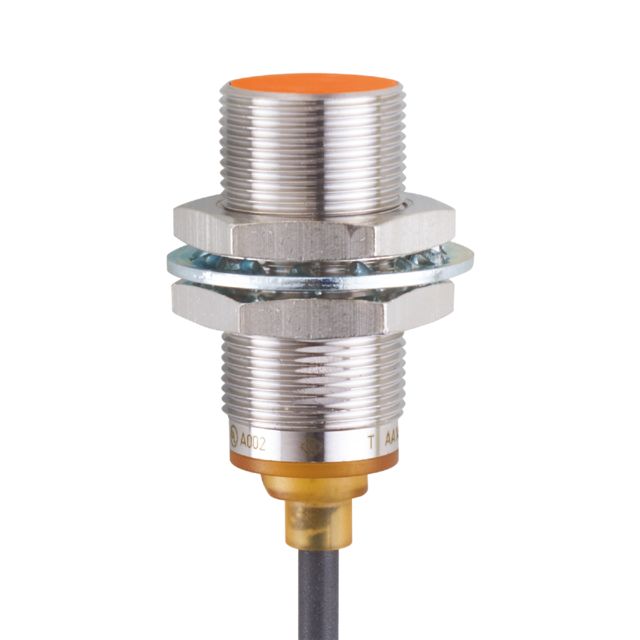

ifm IGS721, Inductive Threaded Barrel Proximity Sensor, M18, 8 mm Detection, PNP/NPN NO, 10 → 30 V dc

Name: ifm IGS721, Inductive Threaded Barrel Proximity Sensor, M18, 8 mm Detection, PNP/NPN NO, 10 → 30 V dc
Brand: ifm
SKU: IGS721
Availability: OutOfStock

Part Number : IGS721

Availability: Sold out

Detailed Description
Specifications

The ifm electronic Inductive sensor with metal thread M18 x 1 offers an increased switching distance of 8 mm and can be installed flush. It is equipped with a connection cable and plug connection and works with an operating voltage of 10 to 30 V DC. The sensor is available in both DC PNP and NPN versions and protects against reverse polarity and short circuits. Its outputs are normally open, with a voltage drop of less than 2.5 V, a minimum load current of 2 mA, and a current carrying capacity of up to 100 mA. The sensor also offers protection against overload and meets protection class III.

Suitable for industrial, mobile, cooling and lubricating applications
High protection rating for the requirements of harsh industrial environments
Flexible use thanks to large operating temperature range
Safe detection due to large sensing range and low sensor tolerances
Reduced storage due to wide range of applications

Brand	ifm
Thread Size	M18
Sensor Technology	Inductive
Body Style	Threaded Barrel
Detection Range	8 mm
Output Function	NO
Digital Switching Output Type	PNP/NPN
Connection Type	Pre-Cabled
Cable Length	300mm
Supply Voltage	10 → 30 V dc
IP Rating	IP65, IP66, IP67, IP68, IP69K
Length	40mm
Mounting Type	Flush
Switching Frequency	400 Hz
Switching Current	100 mA
Series	IGS
Shielding	Shielded
