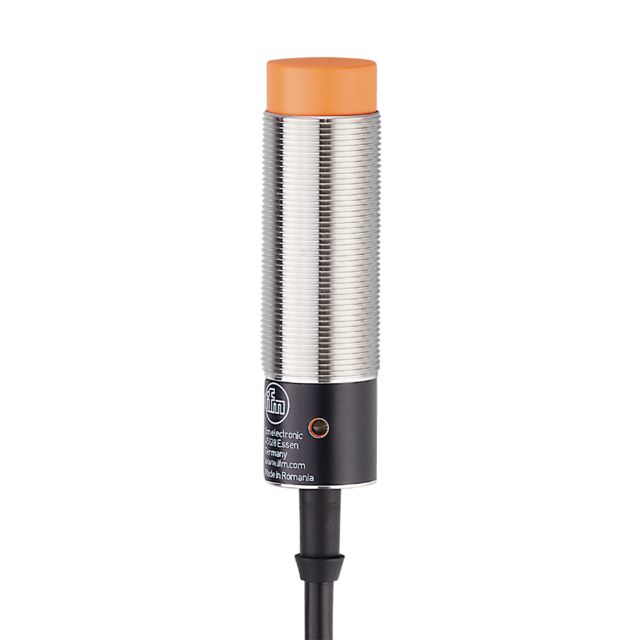

ifm IH7001, Inductive Threaded Barrel Proximity Sensor, 10 mm Detection, PNP NO, 10 → 36 V dc

Name: ifm IH7001, Inductive Threaded Barrel Proximity Sensor, 10 mm Detection, PNP NO, 10 → 36 V dc
Brand: ifm
SKU: IH7001
Availability: InStock

Part Number : IH7001

Availability: low stock

Detailed Description
Specifications
Downloads

The ifm electronic Inductive Sensor from ifm electronic is engineered for precision detection within demanding industrial environments. Designed to create reliable contactless sensing capabilities, it boasts a sensing range of up to 10 mm, making it ideal for applications where space is limited. Crafted from high quality materials, the threaded design ensures durability and ease of installation. With exceptional electrical characteristics, this sensor operates efficiently across a voltage range of 10 to 36 DC.

Robust M22 metal housing
High protection rating for the requirements of harsh industrial environments
Wide operating temperature range

Brand	ifm
Sensor Technology	Inductive
Body Style	Threaded Barrel
Detection Range	10 mm
Digital Switching Output Type	PNP
Output Function	NO
Connection Type	Pre-Cabled
Cable Length	2m
Supply Voltage	10 → 36 V dc
Length	77mm
IP Rating	IP67
Mounting Type	Non-Flush
Switching Frequency	250 Hz
Series	IH
Shielding	Unshielded
Switching Current	250 mA

ifm IH7001, Inductive Threaded Barrel Proximity Sensor, 10 mm Detection, PNP NO, 10 → 36 V dc
