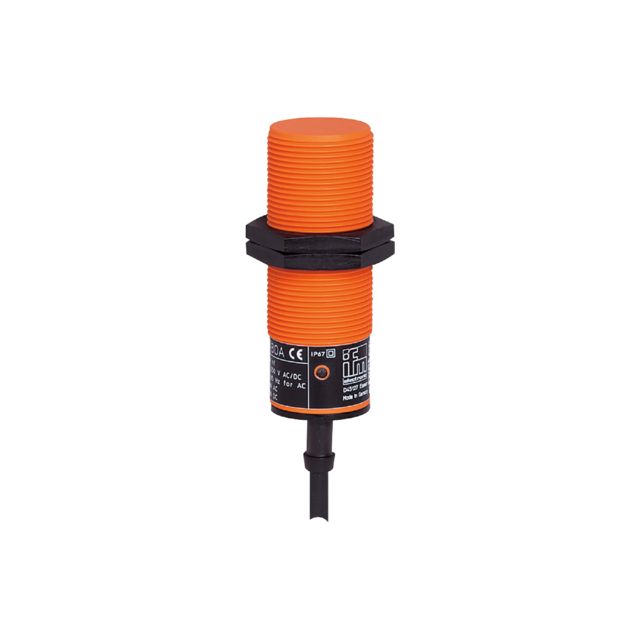

ifm II5301, Inductive Threaded Barrel Proximity Sensor, M30, 15 mm Detection, PNP NO, 10 → 36 V dc

Name: ifm II5301, Inductive Threaded Barrel Proximity Sensor, M30, 15 mm Detection, PNP NO, 10 → 36 V dc
Brand: ifm
SKU: II5301
Availability: OutOfStock

Part Number : II5301

Availability: Sold out

Detailed Description
Specifications

The ifm electronic inductive sensor represents a robust and reliable solution engineered to deliver exceptional performance across a variety of industrial applications. Designed for efficient operation in demanding environments, this sensor detects metallic objects with precision while maintaining high resistance to electrical disturbances. The meticulously crafted housing and compact dimensions make it exceptionally easy to integrate into existing systems, ensuring minimal disruption during installation. With its advanced engineering and thoughtful design, this sensor not only enhances productivity but also contributes to overall operational safety. Leveraging a sensing range of 15mm, it is well-suited for diverse applications, promising reliability and durability over an extended service life.

Wide operating temperature range
High protection rating for the requirements of harsh industrial environments
For a precise position detection on machines

Brand	ifm
Thread Size	M30
Sensor Technology	Inductive
Body Style	Threaded Barrel
Detection Range	15 mm
Output Function	NO
Digital Switching Output Type	PNP
Connection Type	Pre-Cabled
Cable Length	6m
Supply Voltage	10 → 36 V dc
Length	81mm
IP Rating	IP67
Mounting Type	Non-Flush
Shielding	Unshielded
Switching Current	250 mA
Series	II5
Switching Frequency	250 Hz
