ifm II5854, Inductive Threaded Barrel Proximity Sensor, M30, 15 mm Detection, PNP NO, 10 → 30 V dc

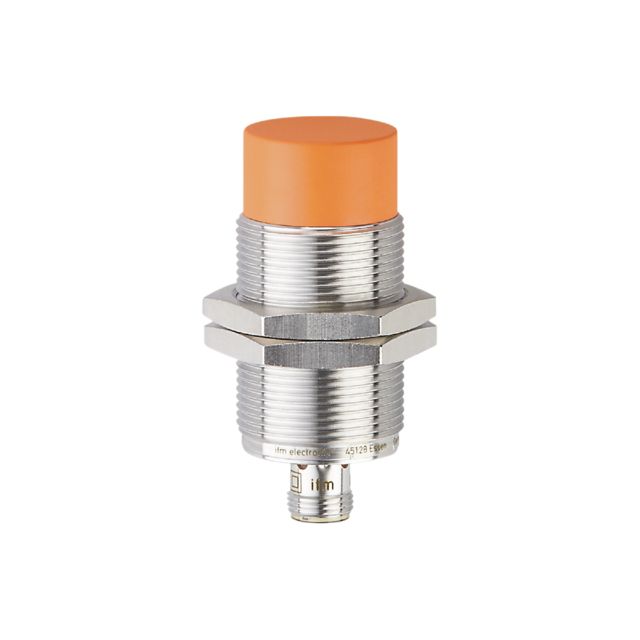

Name: ifm II5854, Inductive Threaded Barrel Proximity Sensor, M30, 15 mm Detection, PNP NO, 10 → 30 V dc
Brand: ifm
SKU: II5854
Availability: OutOfStock

Part Number : II5854

Availability: Sold out

Detailed Description
Specifications
Downloads

The ifm electronic inductive sensor is meticulously designed to provide exceptional performance in industrial environments where precision and reliability are paramount. Utilising advanced PNP technology, it ensures accurate object detection with a sensing range optimised for various applications. The robust construction features a threaded housing for secure installation, while gold-plated contacts enhance conductivity and longevity. Its IP67 rating guarantees protection against dust and water ingress, making it suitable for challenging conditions. With a temperature tolerance from -25 to 80 degrees Celsius, this sensor is built to withstand diverse operational climates. Whether for automated systems or machinery monitoring, this sensor represents an ideal combination of functionality and durability.

Robust metal housing for use in harsh industrial environments
Clearly visible indication of the switching status
Wide operating temperature range
For a precise position detection on machines

Brand	ifm
Thread Size	M30
Sensor Technology	Inductive
Body Style	Threaded Barrel
Detection Range	15 mm
Digital Switching Output Type	PNP
Output Function	NO
Connection Type	M12
Supply Voltage	10 → 30 V dc
IP Rating	IP67
Length	70mm
Mounting Type	Non-Flush
Shielding	Unshielded
Switching Current	200 mA
Switching Frequency	200 Hz
Series	II5
