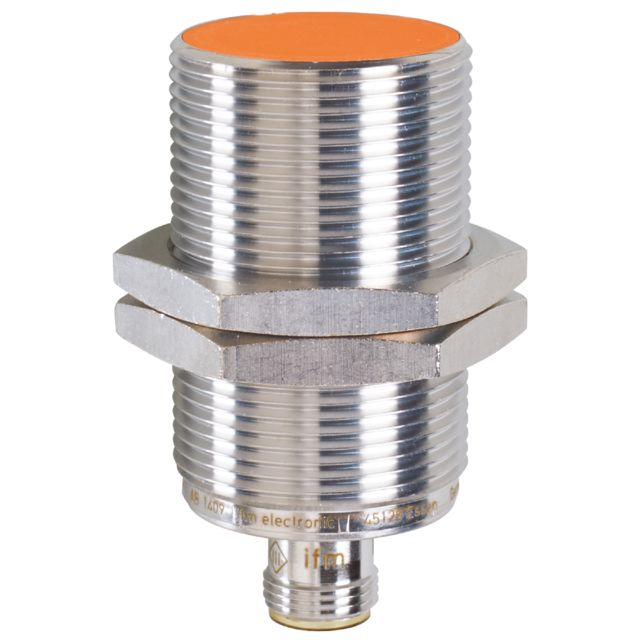

ifm II7102, Inductive Threaded Barrel Proximity Sensor, M30, 10 mm Detection, NPN NO, 10 → 30 V dc

Name: ifm II7102, Inductive Threaded Barrel Proximity Sensor, M30, 10 mm Detection, NPN NO, 10 → 30 V dc
Brand: ifm
SKU: II7102
Availability: OutOfStock

Part Number : II7102

Availability: Sold out

Detailed Description
Specifications
Downloads

The ifm electronic Inductive sensor is designed to excel in demanding environments, providing precision detection with reliable performance. Engineered with advanced technology, it offers a robust electrical design that ensures dependable operation even under varied conditions. Integrated with features such as gold plated contacts, the sensor is built to last while delivering high accuracy and sensitivity. Its threaded housing allows for easy installation in tight spaces, making it an ideal choice for applications requiring flush mounting.

Excellent price/performance ratio
Robust metal housing for use in harsh industrial environments
Permanently legible laser type label
Clearly visible indication of the switching status
High protection rating for the requirements of harsh industrial environments

Brand	ifm
Thread Size	M30
Sensor Technology	Inductive
Detection Range	10 mm
Body Style	Threaded Barrel
Output Function	NO
Digital Switching Output Type	NPN
Connection Type	M12
Supply Voltage	10 → 30 V dc
IP Rating	IP67
Length	60mm
Mounting Type	Flush
Shielding	Shielded
Series	II
Switching Frequency	200 Hz
Switching Current	100 mA

ifm II7102, Inductive Threaded Barrel Proximity Sensor, M30, 10 mm Detection, NPN NO, 10 → 30 V dc
