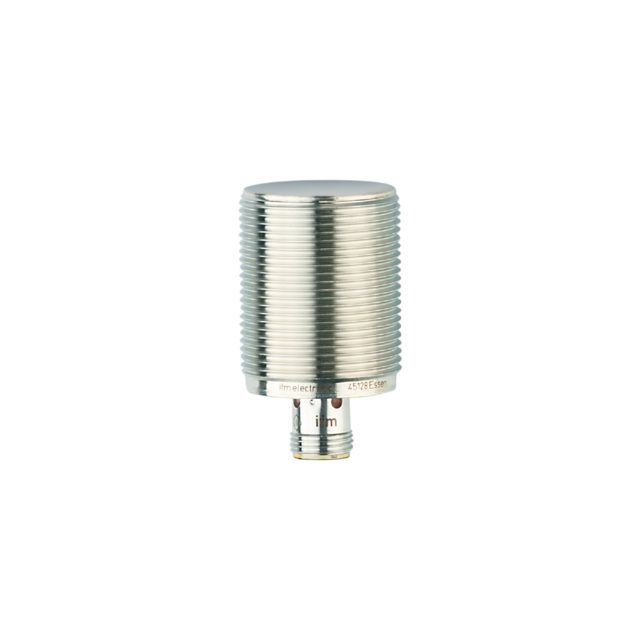

Name: ifm IIC233, Inductive Threaded Barrel Proximity Sensor, M30, 15 mm Detection, PNP NO, 10 → 30 V dc
Brand: ifm
SKU: IIC233
Availability: OutOfStock

ifm IIC233, Inductive Threaded Barrel Proximity Sensor, M30, 15 mm Detection, PNP NO, 10 → 30 V dc

Client Protection

Dedicated Support

Client Protection

Dedicated Support

ifm IIC233, Inductive Threaded Barrel Proximity Sensor, M30, 15 mm Detection, PNP NO, 10 → 30 V dc

Part Number : IIC233

Availability: Sold out

Detailed Description
Specifications

The ifm electronic Inductive Full Metal Sensor combines advanced technology with robust design, making it an ideal choice for various industrial applications. Designed for use in challenging environments, the product boasts a fully metal housing, ensuring durability and resistance to harsh conditions. With its gold plated contacts, it provides superior reliability and an increased sensing range that meets the demands of machine tools and lubrication systems. This versatile sensor is engineered to function effectively in both wet and dry conditions, maintaining impeccable performance even under pressure.

For use in machine tools and metalworking
Resistant to oils and coolants
Metal sensing face for heavy duty
Clearly visible indication of the switching status
Safe detection due to large sensing range and low sensor tolerances

Brand	ifm
Thread Size	M30
Sensor Technology	Inductive
Detection Range	15 mm
Body Style	Threaded Barrel
Output Function	NO
Digital Switching Output Type	PNP
Connection Type	M12
Supply Voltage	10 → 30 V dc
Length	50mm
IP Rating	IP65, IP66, IP67, IP68, IP69K
Mounting Type	Flush
Series	IIC
Switching Current	100 mA
Shielding	Shielded
Switching Frequency	50 Hz
