ifm IIS702, Inductive Threaded Barrel Proximity Sensor, M30, 22 mm Detection, NPN NO, 10 → 30 V dc

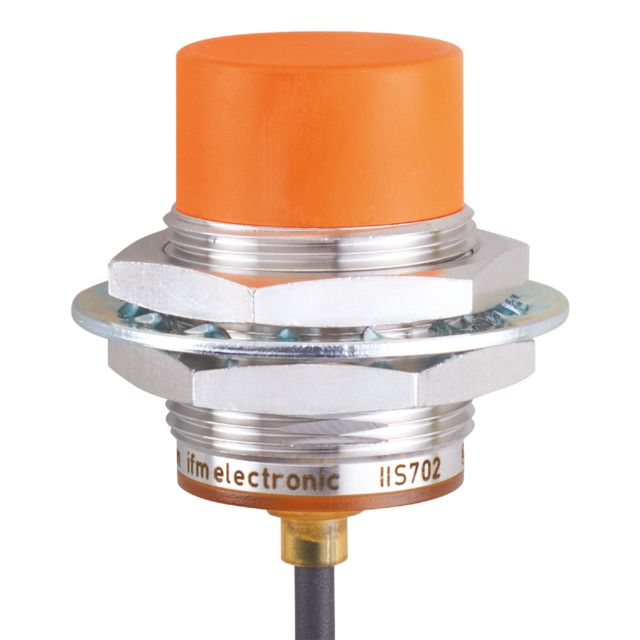

Name: ifm IIS702, Inductive Threaded Barrel Proximity Sensor, M30, 22 mm Detection, NPN NO, 10 → 30 V dc
Brand: ifm
SKU: IIS702
Availability: OutOfStock

Part Number : IIS702

Availability: Sold out

Detailed Description
Specifications

The ifm electronic Inductive Sensor is expertly designed for precision in industrial applications, ensuring reliability and efficiency. With its NPN output function and an impressive sensing range, it excels in factory automation tasks, delivering exceptional performance even in challenging environments. The product highlights an increased sensing range, making it an invaluable asset for various operational needs. Crafted with durable materials and a sturdy threaded housing, it promises longevity and resilience.

Suitable for industrial, mobile, cooling and lubricating applications
High protection rating for the requirements of harsh industrial environments
Flexible use thanks to large operating temperature range
Safe detection due to large sensing range and low sensor tolerances
Reduced storage due to wide range of applications

Brand	ifm
Thread Size	M30
Sensor Technology	Inductive
Detection Range	22 mm
Body Style	Threaded Barrel
Output Function	NO
Digital Switching Output Type	NPN
Connection Type	Pre-Cabled
Cable Length	2m
Supply Voltage	10 → 30 V dc
Length	45mm
IP Rating	IP65, IP66, IP67, IP68, IP69K
Mounting Type	Non-Flush
Switching Frequency	100 Hz
Series	IIS
Switching Current	100 mA
Shielding	Unshielded
