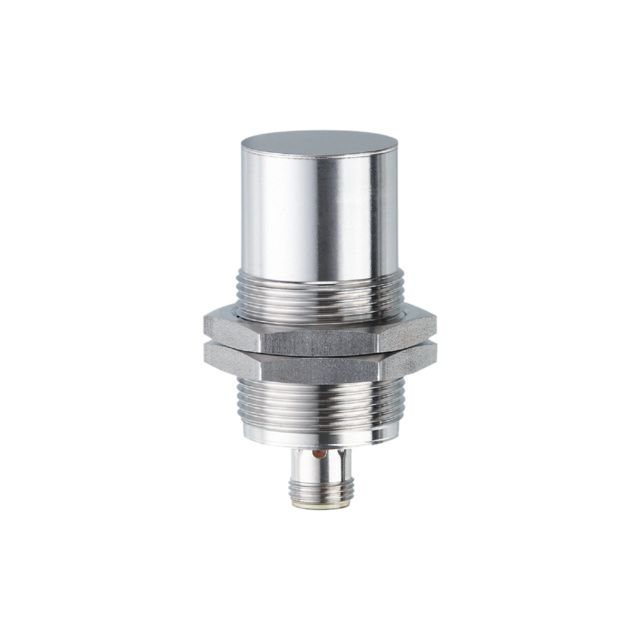

ifm IIT232, Inductive Threaded Barrel Proximity Sensor, M30, 25 mm Detection, NPN NO, 10 → 30 V dc

Name: ifm IIT232, Inductive Threaded Barrel Proximity Sensor, M30, 25 mm Detection, NPN NO, 10 → 30 V dc
Brand: ifm
SKU: IIT232
Availability: OutOfStock

Part Number : IIT232

Availability: Sold out

Detailed Description
Specifications

The ifm electronic Inductive Full Metal Sensor is engineered to deliver exceptional performance in challenging environments. Offering a robust design, it is suited for applications involving aggressive cleaning agents and high-pressure conditions, making it a reliable choice for industrial use. This sensor features a gold plated contact system and boasts an extended sensing range. With its threaded stainless steel housing, it assures durability while maintaining precise functionality. The device is designed for ease of installation and boasts a compact form factor, making it ideal for various mounting situations.

Robust full-metal housing from stainless steel for use in the food and beverage industry
Wide operating temperature range
Temperature shock resistant even in case of frequent temperature fluctuations
Resistant to high-pressure cleaning with aggressive cleaning agents
High protection rating for the requirements of harsh industrial environments

Brand	ifm
Thread Size	M30
Sensor Technology	Inductive
Detection Range	25 mm
Body Style	Threaded Barrel
Output Function	NO
Digital Switching Output Type	NPN
Connection Type	M12
Supply Voltage	10 → 30 V dc
IP Rating	IP65, IP67, IP68, IP69K
Length	65mm
Mounting Type	Non-Flush
Switching Current	100 mA
Shielding	Unshielded
Switching Frequency	100 Hz
Series	IIT
