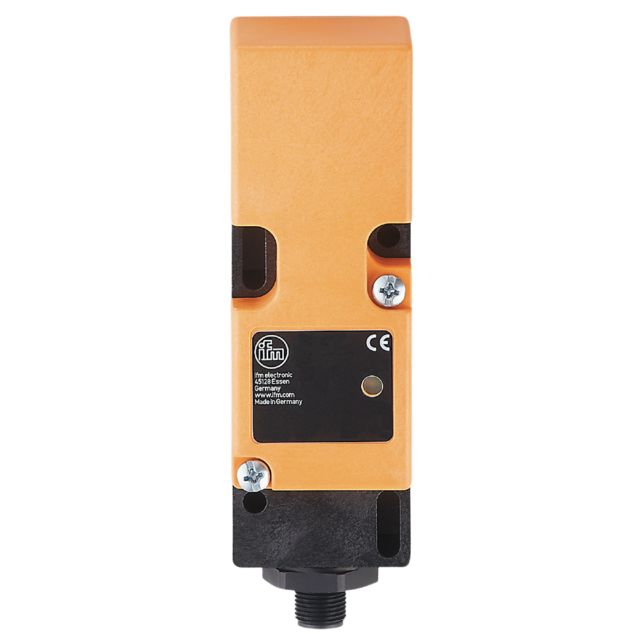

ifm IM5033, Inductive Rectangular Proximity Sensor, 15 mm Detection, PNP NO, 10 → 36 V dc

Name: ifm IM5033, Inductive Rectangular Proximity Sensor, 15 mm Detection, PNP NO, 10 → 36 V dc
Brand: ifm
SKU: IM5033
Availability: OutOfStock

Part Number : IM5033

Availability: Sold out

Detailed Description
Specifications

The ifm electronic inductive sensor is engineered for precise detection in a variety of industrial applications. It offers robust performance with a compact design that easily integrates into existing systems. Featuring a sensing range of up to 15 mm, this sensor is adept at identifying metallic objects with reliability and accuracy. Its rectangular housing is not only durable but also designed to withstand harsh environments, making it an ideal choice for both factory and outdoor settings. The sensor is equipped with advanced protection features, including reverse polarity and short-circuit protection, ensuring operational safety. Enhanced by an LED indicator, it provides real-time feedback on operational status, facilitating ease of use during setup and maintenance. This versatile sensor excels in delivering consistent results, underlining its value in a range of applications.

Long sensing range for use in conveying
Output function normally open or normally closed programmable
Robust housing for use in harsh industrial environments
Five positions of the sensing face selectable
Clearly visible indication of the switching status

Brand	ifm
Sensor Technology	Inductive
Detection Range	15 mm
Body Style	Rectangular
Digital Switching Output Type	PNP
Output Function	NO
Connection Type	M12
Supply Voltage	10 → 36 V dc
Length	40mm
IP Rating	IP65
Mounting Type	Flush
Series	IM5
Shielding	Shielded
Switching Current	250 mA
Switching Frequency	250 Hz
