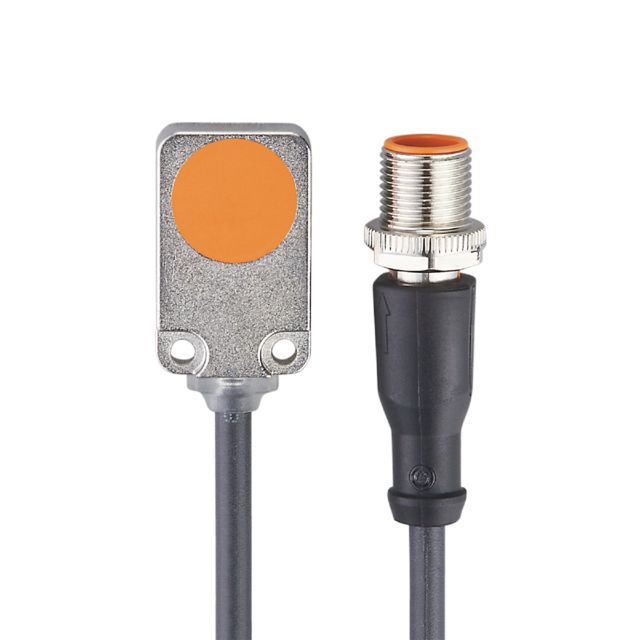

ifm IQ2009, Inductive Rectangular Proximity Sensor, 0.75 → 7.5 mm Detection, PNP/NPN NO/NC, 10 → 30 V

Name: ifm IQ2009, Inductive Rectangular Proximity Sensor, 0.75 → 7.5 mm Detection, PNP/NPN NO/NC, 10 → 30 V
Brand: ifm
SKU: IQ2009
Availability: InStock

Part Number : IQ2009

Availability: low stock

Detailed Description
Specifications
Downloads

The ifm electronic inductive sensor combines precision and reliability with advanced IO-Link technology. Its compact 20 x 8 x 32 mm rectangular housing is ideal for flush mounting, providing versatility across various setups. With a high protection rating of IP65 to IP68, the sensor is built to endure harsh environments. Enhanced by features like short-circuit and overload protection, it ensures consistent performance and efficient operation in demanding tasks.

Setting options PNP/NPN or NO/NC help to reduce storage costs
Long life and robustness thanks to flush installation and a high temperature range
Particularly compact housing for use where space is restricted
Continuous position feedback via IO-Link
Switch

Brand	ifm
Sensor Technology	Inductive
Detection Range	0.75 → 7.5 mm
Body Style	Rectangular
Output Function	NO/NC
Digital Switching Output Type	PNP/NPN
Cable Length	300mm
Connection Type	M12
Supply Voltage	10 → 30 V dc
Length	32mm
IP Rating	IP65, IP66, IP67, IP68
Mounting Type	Flush
Switching Frequency	300 Hz
Series	IQ
Switching Current	100 mA
Communication Protocol	IO-LINK
Shielding	Shielded
