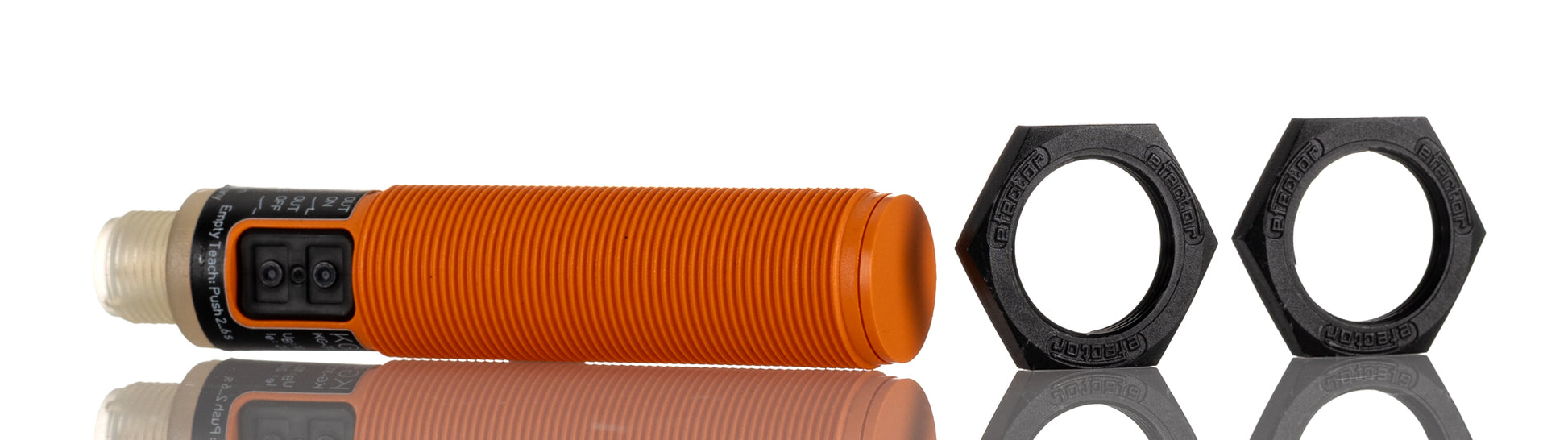

ifm KG5065, Capacitive Threaded Barrel Proximity Sensor, M18, 12 mm Detection, PNP/NPN NO/NC, 10 → 36 V dc

Name: ifm KG5065, Capacitive Threaded Barrel Proximity Sensor, M18, 12 mm Detection, PNP/NPN NO/NC, 10 → 36 V dc
Brand: ifm
SKU: KG5065
Availability: OutOfStock

Part Number : KG5065

Availability: Sold out

Detailed Description
Specifications

IFM KG5 M18 Capacitive Barrel Proximity Sensor

ifm electronic KG5 M18 capacitive sensors feature a 12-LED bar display to give visibility of sensor performance allowing the adaption of the switch point to suit the application conditions. The green LEDs either side of the switch point indicate the reliability of the switch point. Deposits and material changes are displayed directly on the sensor. An imminent error can be detected in good time and avoided, minimising the risk of failures or deactivation.

Features and Benefits

IO-Link communication

Unique visualisation and handling concept via LED display

See and compensate switch point movement

IP69K gives high ingress resistance

PNP/ NPN, NO/ NC, timer function

For medium temperatures up to 110°C

Brand	ifm
Thread Size	M18
Sensor Technology	Capacitive
Detection Range	12 mm
Body Style	Threaded Barrel
Digital Switching Output Type	PNP/NPN
Output Function	NO/NC
Connection Type	M12
Supply Voltage	10 → 36 V dc
IP Rating	IP65, IP67
Length	87mm
Mounting Type	Non-Flush
Housing Material	PBT, PC, TPE-U
Maximum DC Voltage	36V
Minimum Operating Temperature	-25°C
Maximum Operating Temperature	+80°C
Communication Protocol	IO-LINK
Reverse Polarity Protection	Yes
Short Circuit Overload Protection	Yes
Shielding	Unshielded
Maximum Switching Frequency	10Hz
