ifm KG5311, Capacitive Threaded Barrel Proximity Sensor, M18, 10 mm Detection, PNP NO, 10 → 30 V dc

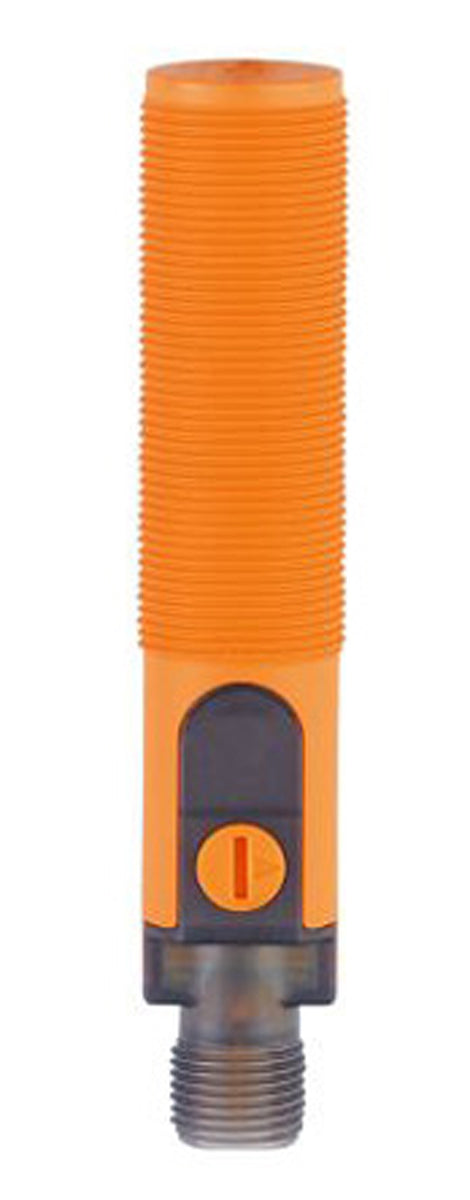

Name: ifm KG5311, Capacitive Threaded Barrel Proximity Sensor, M18, 10 mm Detection, PNP NO, 10 → 30 V dc
Brand: ifm
SKU: KG5311
Availability: OutOfStock

Part Number : KG5311

Availability: Sold out

Detailed Description
Specifications

IFM KG5 M18 Capacitive Barrel Proximity Sensor

ifm electronic KG5 M18 capacitive sensors feature a 12-LED bar display to give visibility of sensor performance allowing the adaption of the switch point to suit the application conditions. The green LEDs either side of the switch point indicate the reliability of the switch point. Deposits and material changes are displayed directly on the sensor. An imminent error can be detected in good time and avoided, minimising the risk of failures or deactivation.

Features and Benefits

IO-Link communication

Unique visualisation and handling concept via LED display

See and compensate switch point movement

IP69K gives high ingress resistance

PNP/ NPN, NO/ NC, timer function

For medium temperatures up to 110°C

Brand	ifm
Thread Size	M18
Sensor Technology	Capacitive
Body Style	Threaded Barrel
Detection Range	10 mm
Digital Switching Output Type	PNP
Output Function	NO
Connection Type	M12
Supply Voltage	10 → 30 V dc
IP Rating	IP65, IP67, IP69K
Length	92.5mm
Mounting Type	Non-Flush
Housing Material	PBT, PC, POM
Maximum DC Voltage	30V
Minimum Operating Temperature	-25°C
Maximum Operating Temperature	+80°C
Switching Frequency	30 Hz
Standards Met	CE, cULus, DIN EN 60947-5-2, EAC, EN 55011, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-6, IEC 61131-9
Switching Current	22 mA
Shielding	Unshielded
Short Circuit Overload Protection	Yes
