ifm KG6007, Capacitive Threaded Barrel Proximity Sensor, M18, 0.5 → 30 mm Detection, NPN NO/NC, 10 →

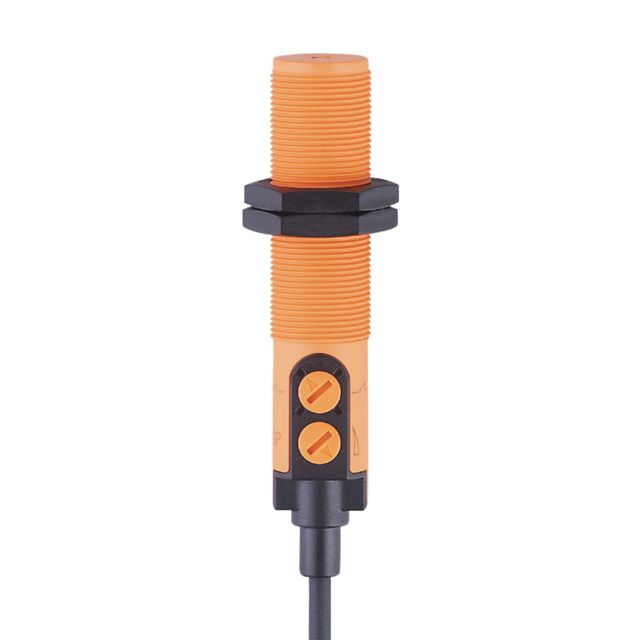

Name: ifm KG6007, Capacitive Threaded Barrel Proximity Sensor, M18, 0.5 → 30 mm Detection, NPN NO/NC, 10 →
Brand: ifm
SKU: KG6007
Availability: InStock

Part Number : KG6007

Availability: low stock

Detailed Description
Specifications
Downloads

The ifm electronic capacitive sensor offers precise sensing with a range adjustable from 0.5 to 30 mm. Its NPN output and IO-Link communication facilitate seamless integration and configuration. Designed with a rugged, compact housing, it ensures reliable performance across a wide voltage range and extreme temperatures. Built-in LED indicators and superior EMC protection enhance usability and durability in demanding conditions.

Easily adjustable sensing range
With signal display for a perfect switch point
High protection rating for the requirements of harsh industrial environments
Use in high medium temperatures
For position detection or level monitoring
User-friendly communicat

Brand	ifm
Thread Size	M18
Sensor Technology	Capacitive
Body Style	Threaded Barrel
Detection Range	0.5 → 30 mm
Output Function	NO/NC
Digital Switching Output Type	NPN
Connection Type	Pre-Cabled
Cable Length	5m
Supply Voltage	10 → 30 V dc
Length	92.5mm
IP Rating	IP65, IP67, IP69K
Mounting Type	Non-Flush
Shielding	Unshielded
Switching Current	200 mA
Series	KG
Switching Frequency	30 Hz
Communication Protocol	IO-LINK
