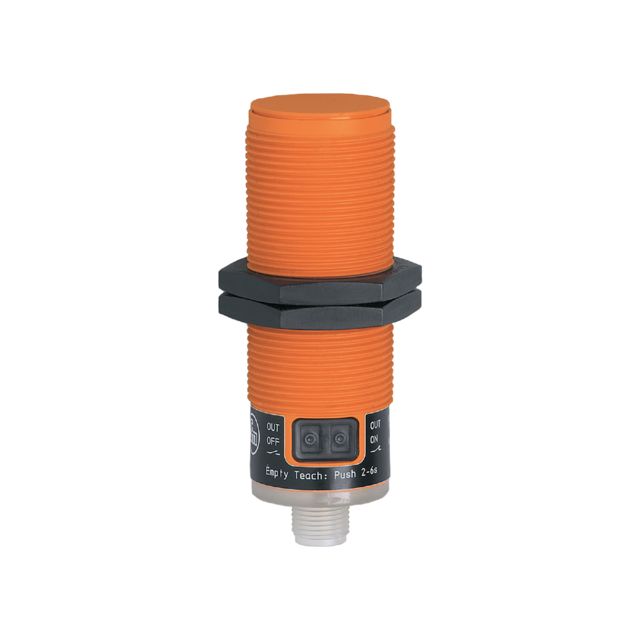

ifm KI0058, Capacitive Threaded Barrel Proximity Sensor, M30, 20 mm Detection, 2-Wire NO/NC, 24 → 230 V

Name: ifm KI0058, Capacitive Threaded Barrel Proximity Sensor, M30, 20 mm Detection, 2-Wire NO/NC, 24 → 230 V
Brand: ifm
SKU: KI0058
Availability: InStock

Part Number : KI0058

Availability: low stock

Detailed Description
Specifications
Downloads

The ifm electronic capacitive sensor offers precision in detecting various materials with its versatile output options. Its robust, threaded housing and adaptable dimensions ensure easy integration and reliable performance in diverse setups. The sensor’s extended sensing range and programmable output functions make it ideal for both liquids and dry bulk materials in challenging environments.

Easy adjustment to the empty and full state via pushbutton
For the detection of liquids and dry bulk materials
With combined AC/DC output stage
Adjustable switching delay
Output function normally open or normally closed programmable

Brand	ifm
Thread Size	M30
Sensor Technology	Capacitive
Body Style	Threaded Barrel
Detection Range	20 mm
Digital Switching Output Type	2-Wire
Output Function	NO/NC
Connection Type	1/2"20 UNF
Supply Voltage	24 → 230 V ac/dc, 24 → 250 V ac/dc
IP Rating	IP65, IP67
Length	90mm
Mounting Type	Non-Flush
Switching Frequency	10 Hz
Shielding	Unshielded
Switching Current	100 mA
Series	KI
