ifm KI0061, Capacitive Threaded Barrel Proximity Sensor, M30, 20 mm Detection, 2-Wire NC, 20 → 250 V ac/dc,

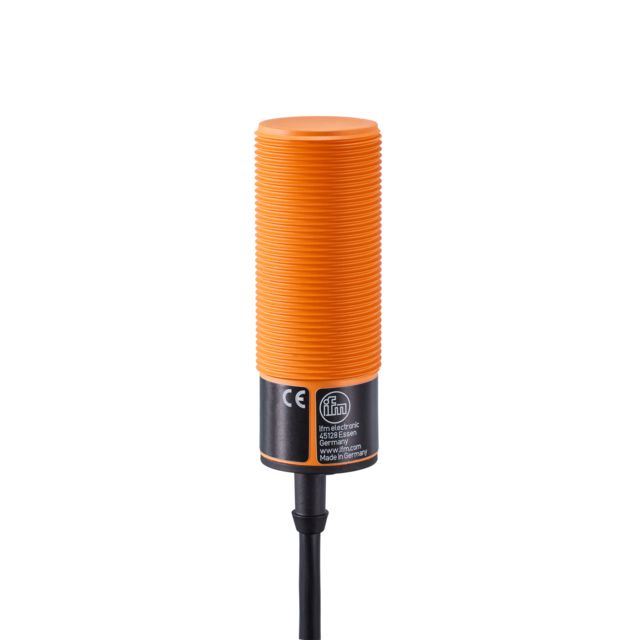

Name: ifm KI0061, Capacitive Threaded Barrel Proximity Sensor, M30, 20 mm Detection, 2-Wire NC, 20 → 250 V ac/dc,
Brand: ifm
SKU: KI0061
Availability: OutOfStock

Part Number : KI0061

Availability: Sold out

Detailed Description
Specifications
Downloads

The ifm electronic capacitive sensor offers precise detection with an adjustable range starting at 20 mm. Its compact, threaded housing ensures easy integration, while the dual output function and wide voltage range (20 to 250 AC/DC) enhance versatility. With IP65/IP67 ratings for protection against dust and water, and adjustable output holding time, this sensor is ideal for challenging environments and dynamic applications.

For the detection of liquids and dry bulk materials
With combined AC/DC output stage
Adjustable switching delay
Two-wire technology

Brand	ifm
Thread Size	M30
Sensor Technology	Capacitive
Detection Range	20 mm
Body Style	Threaded Barrel
Digital Switching Output Type	2-Wire
Output Function	NC
Cable Length	2m
Connection Type	Pre-Cabled
Supply Voltage	20 → 250 V ac/dc, 20 → 250 V ac/dc
Length	81mm
IP Rating	IP65, IP67
Mounting Type	Non-Flush
Switching Frequency	10 Hz
Switching Current	200 mA
Series	KI
Shielding	Unshielded
