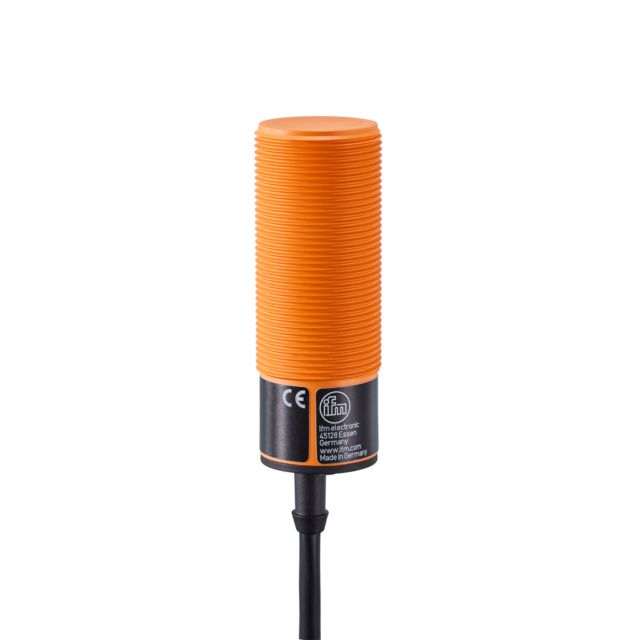

ifm KI5001, Capacitive Threaded Barrel Proximity Sensor, M30, 15 mm Detection, PNP NC, 10 → 36 V dc

Name: ifm KI5001, Capacitive Threaded Barrel Proximity Sensor, M30, 15 mm Detection, PNP NC, 10 → 36 V dc
Brand: ifm
SKU: KI5001
Availability: InStock

Part Number : KI5001

Availability: low stock

Detailed Description
Specifications
Downloads

The ifm electronic capacitive sensor provides precise detection in diverse applications with its rugged, threaded housing and a sensing range of 15 mm. Designed for reliability in harsh conditions, it operates effectively across temperatures from -25 to 70°C and includes features like reverse polarity protection. Its robust construction and compliance with rigorous EMC standards ensure longevity and dependable performance, making it ideal for both automated processes and safety applications.

High noise immunity
Easy setting of the sensing range via potentiometer
Clearly visible indication of the switching status
With PVC cable
For position detection or level monitoring

Brand	ifm
Thread Size	M30
Sensor Technology	Capacitive
Body Style	Threaded Barrel
Detection Range	15 mm
Digital Switching Output Type	PNP
Output Function	NC
Cable Length	2m
Connection Type	Pre-Cabled
Supply Voltage	10 → 36 V dc
IP Rating	IP65
Length	81mm
Mounting Type	Non-Flush
Shielding	Unshielded
Series	KI
Switching Current	250 mA
Switching Frequency	40 Hz
