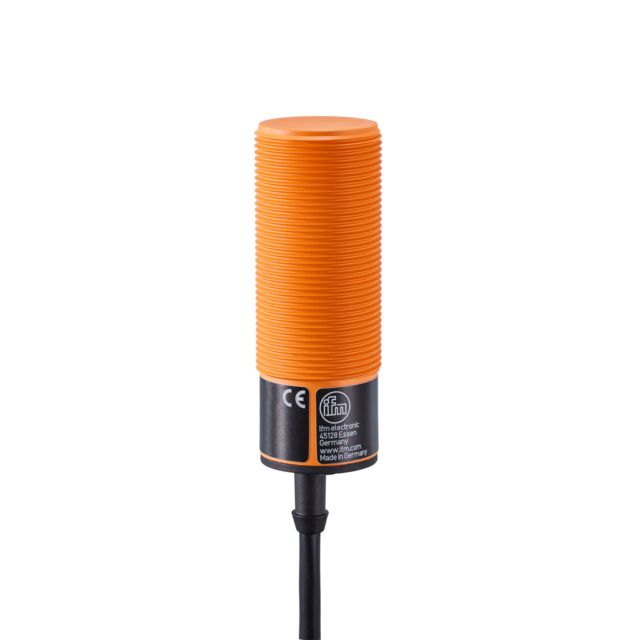

ifm KI5209, Capacitive Threaded Barrel Proximity Sensor, M30, 15mm Detection, PNP NO/NC, 10 → 36 V dc

Name: ifm KI5209, Capacitive Threaded Barrel Proximity Sensor, M30, 15mm Detection, PNP NO/NC, 10 → 36 V dc
Brand: ifm
SKU: KI5209
Availability: InStock

Part Number : KI5209

Availability: low stock

Detailed Description
Specifications
Downloads

The ifm electronic capacitive sensor is engineered for precision and versatility across diverse applications. Its threaded housing ensures durability and ease of integration into various systems. With a broad sensing range and adjustable output functions, it adapts to specific detection needs effortlessly. Designed for robust performance, this sensor is suitable for both industrial and automation environments, offering reliable operation and simplified installation.

Easy setting of the sensing range via potentiometer
Clearly visible indication of the switching status
Short connection cable with M12 connector
Output function normally open or normally closed programmable

Brand	ifm
Thread Size	M30
Sensor Technology	Capacitive
Body Style	Threaded Barrel
Detection Range	15mm
Digital Switching Output Type	PNP
Output Function	NO/NC
Cable Length	100mm
Connection Type	M12
Supply Voltage	10 → 36 V dc
Length	81mm
IP Rating	IP65
Mounting Type	Non-Flush
Switching Current	250 mA
Series	KI
Switching Frequency	250 Hz
Shielding	Unshielded

ifm KI5209, Capacitive Threaded Barrel Proximity Sensor, M30, 15mm Detection, PNP NO/NC, 10 → 36 V dc
