ifm KI5309, Capacitive Threaded Barrel Proximity Sensor, M30, 40 mm Detection, PNP NO, 10 → 30 V dc

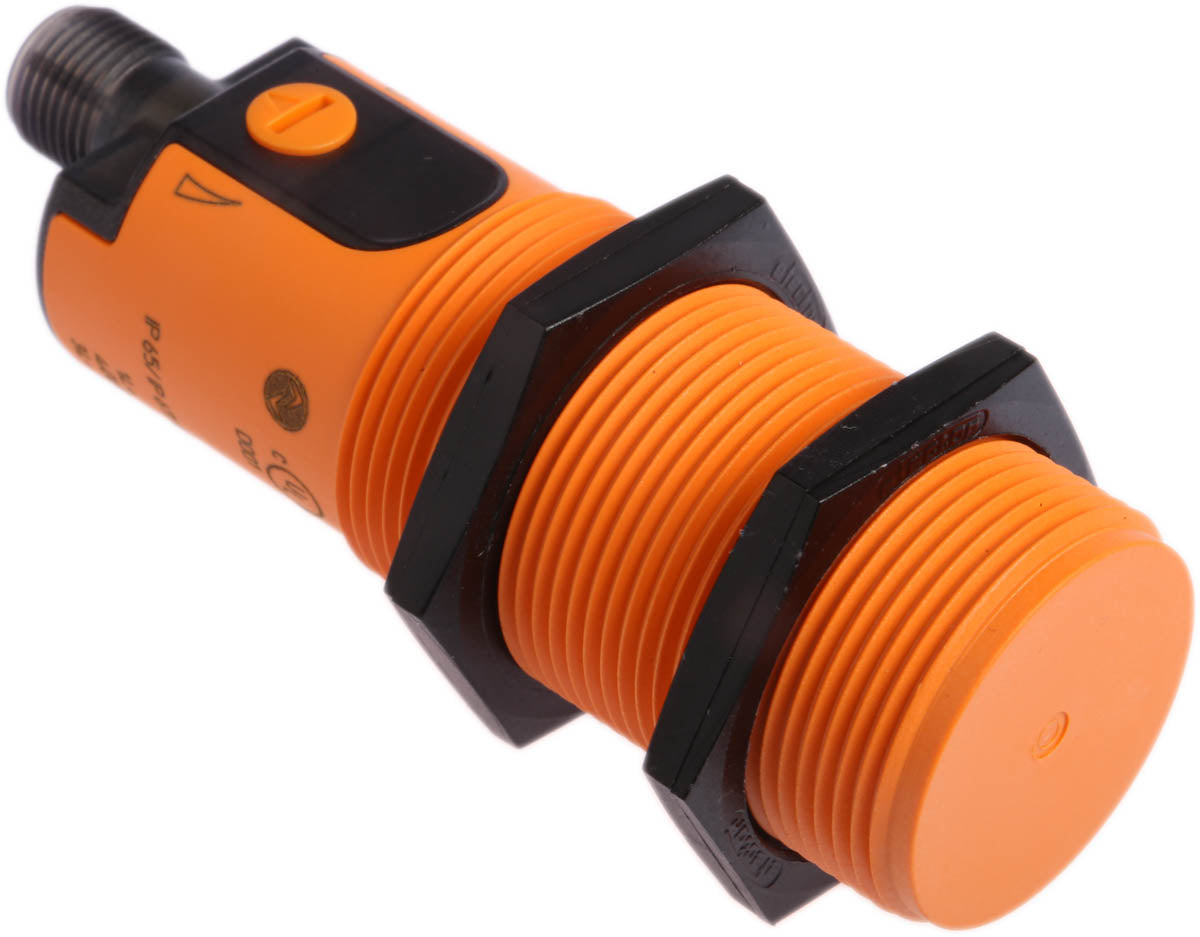

Name: ifm KI5309, Capacitive Threaded Barrel Proximity Sensor, M30, 40 mm Detection, PNP NO, 10 → 30 V dc
Brand: ifm
SKU: KI5309
Availability: OutOfStock

Part Number : KI5309

Availability: Sold out

Detailed Description
Specifications

IFM KI5 M30 Capacitive Barrel Proximity Sensor

ifm electronic KI5 M30 capacitive sensors feature a 12-LED bar display to give visibility of sensor performance allowing the adaption of the switch point to suit the application conditions. The green LEDs either side of the switch point indicate the reliability of the switch point. Deposits and material changes are displayed directly on the sensor. An imminent error can be detected in good time and avoided, minimising the risk of failures or deactivation.

Features and Benefits

IO-Link communication

Unique visualisation and handling concept via LED display

See and compensate switch point movement

IP69K gives high ingress resistance

PNP/ NPN, NO/ NC, timer function

For medium temperatures up to 110°C

Brand	ifm
Thread Size	M30
Sensor Technology	Capacitive
Detection Range	40 mm
Body Style	Threaded Barrel
Digital Switching Output Type	PNP
Output Function	NO
Connection Type	M12
Supply Voltage	10 → 30 V dc
Length	92mm
IP Rating	IP65, IP67, IP69K
Mounting Type	Non-Flush
Housing Material	PBT, PC, POM
Maximum DC Voltage	30V
Minimum Operating Temperature	-25°C
Shielding	Unshielded
Maximum Operating Temperature	+80°C
Reverse Polarity Protection	Yes
Maximum Switching Frequency	40Hz
Switching Current	22 mA
Communication Protocol	IO-LINK
