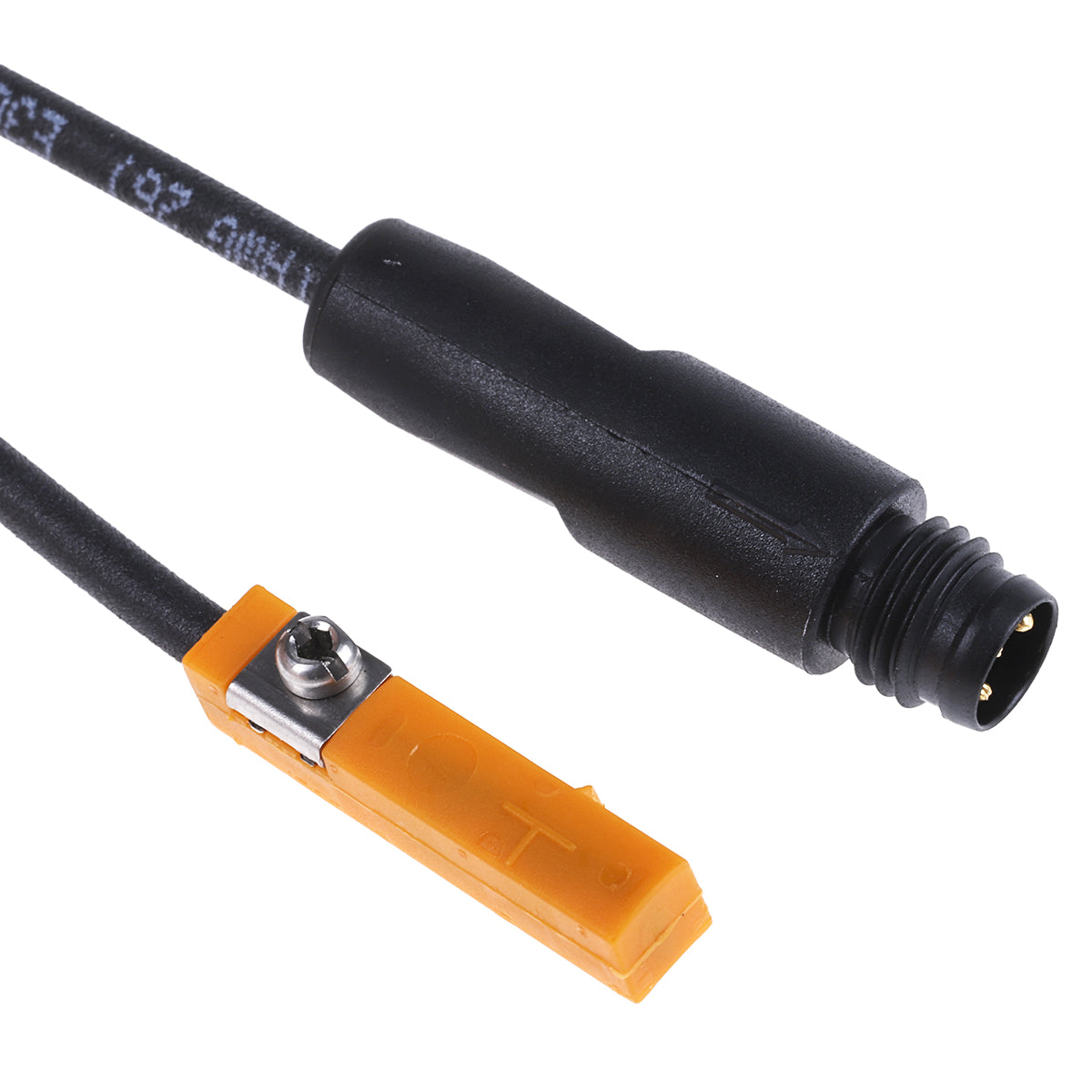

Name: ifm MK5101, Cylinder Magnetic Sensor, IP65, IP67, 10 → 30V dc, PNP OperationY
Brand: ifm
SKU: MK5101
Availability: OutOfStock

ifm MK5101, Cylinder Magnetic Sensor, IP65, IP67, 10 → 30V dc, PNP OperationY

Client Protection

Dedicated Support

Client Protection

Dedicated Support

ifm MK5101, Cylinder Magnetic Sensor, IP65, IP67, 10 → 30V dc, PNP OperationY

Part Number : MK5101

Availability: Sold out

Detailed Description
Specifications
Downloads

Magnetic Proximity Switch for Pneumatic Cylinders

Sensor for pneumatic cylinders
Records the ring magnets in the cylinder pistons
Precise recording of position by means of accurate switching points
Output: N/O
Output current max. 100 mA
Response threshold 2.1 mT
Traverse speed > 10 m/s
Polarity reversal protection
LED status display
Connection lead with plug connection
Plastic housing for T-slot cylinders
Flush-mountable
Quick and easy assembly

Approvals

CE, UL

Supplied with

Memory rubber, cable clip

Brand	ifm
Supply Voltage	10 → 30V dc
LED Indicator	Y
Operation	PNP
IP Rating	IP65, IP67
Minimum Operating Temperature	-25°C
Maximum Operating Temperature	+85°C
