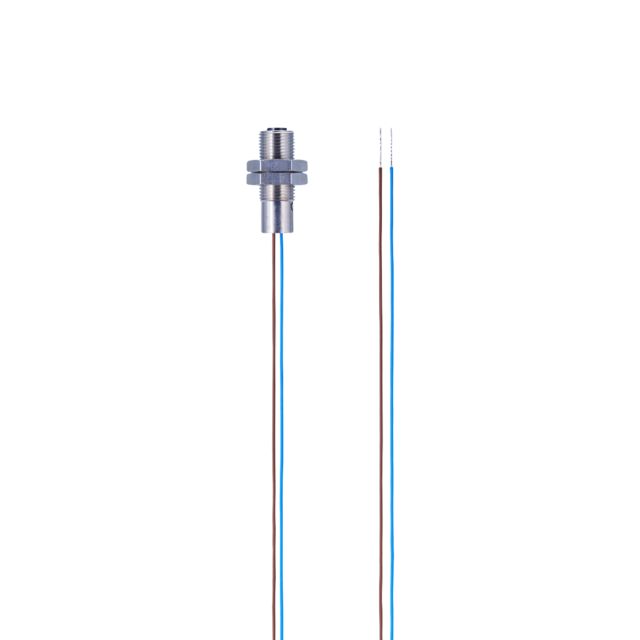

ifm NF504A, Inductive Threaded Barrel Proximity Sensor, M12, 0.05 → 0.5 mm Detection, 2-Wire NC, 7.5 →

Client Protection

Dedicated Support

Client Protection

Dedicated Support

ifm NF504A, Inductive Threaded Barrel Proximity Sensor, M12, 0.05 → 0.5 mm Detection, 2-Wire NC, 7.5 →

Name: ifm NF504A, Inductive Threaded Barrel Proximity Sensor, M12, 0.05 → 0.5 mm Detection, 2-Wire NC, 7.5 →
Brand: ifm
SKU: NF504A
Availability: OutOfStock

Part Number : NF504A

Availability: Sold out

Detailed Description
Specifications

The ifm electronic inductive sensor offers precision and durability for demanding industrial applications, including turbine gas meters. Its robust threaded housing ensures easy installation and withstands pressures up to 100 bar, while operating reliably in temperatures from -25 to 60 °C. The sensor features a normally closed output for dependable detection and integrates seamlessly with intrinsically safe circuits, making it a versatile choice for both safety and performance in challenging environments.

Brass special coating
Output function normally closed
Non flush mountable
IP67 protection rating

Brand	ifm
Thread Size	M12
Sensor Technology	Inductive
Body Style	Threaded Barrel
Detection Range	0.05 → 0.5 mm
Digital Switching Output Type	2-Wire
Output Function	NC
Connection Type	Pre-Cabled
Cable Length	500mm
Supply Voltage	7.5 → 30 V dc
IP Rating	IP67
Length	33mm
Mounting Type	Non-Flush
Shielding	Unshielded
Switching Frequency	2.5 kHz
Switching Current	30 mA
Series	NF
