ifm O5D101 | Photoelectric Sensor | 0.03 → 2 m, PNP

Name: ifm O5D101 | Photoelectric Sensor | 0.03 → 2 m, PNP
Brand: ifm
SKU: O5D101
Availability: InStock

Part Number : O5D101

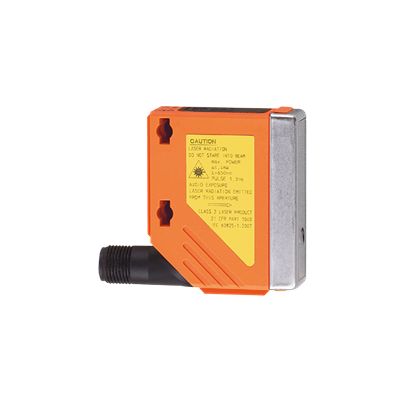

The ifm O5D101 is a photoelectric sensor with detection range 0.03 → 2 m, output type PNP and electrical connection M12 Connector.

Sensor Style: Rectangular
Detection Type: Background Suppression
Detection Range: 0.03 → 2 m
Output Type: PNP
Electrical Connection: M12 Connector
Communication Protocol: IO-LINK

Availability: low stock

Detailed Description
Specifications
Downloads

The ifm electronic Photoelectric distance sensor delivers precise measurements for a variety of applications. Designed to excel in detecting distances up to 2 metres with background suppression, this sensor utilises red light and features a compact rectangular housing, making it suitable for more confined spaces. Its robust design ensures reliability even in demanding environments, with an operating temperature range from -25°C to 60°C. With an alphanumeric display and intuitive pushbuttons, users can easily navigate settings and monitor performance. Coupled with advanced functions such as reverse polarity protection and solid short-circuit protection, it is built for longevity and efficiency.

Compact design for easy integration in limited spaces
Detects distances with high accuracy supporting both black and white backgrounds
Integrated IO Link communication for seamless connectivity and data transfer
Robust protection ratings ensure durability in harsh environments
High switching frequency of 11 Hz for quick response times
Short circuit and overload protections enhance operational safety
Alphanumeric display provides clear operational status and settings visibility
Low current consumption ensures energy efficiency over extended use
Certified against stringent EMC and vibration resistance standards for reliable performance

Brand	ifm
Detection Type	Background Suppression
Detection Range	0.03 → 2 m
Sensor Style	Rectangular
Output Type	PNP
Electrical Connection	M12 Connector
Communication Protocol	IO-LINK

ifm O5D101 | Photoelectric Sensor | 0.03 → 2 m, PNP
