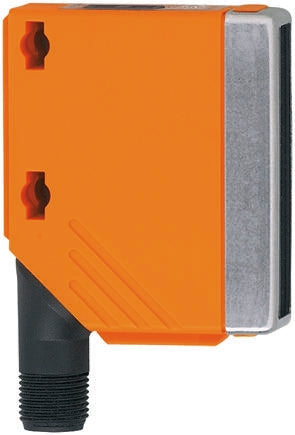

ifm O5S200 | Photoelectric Sensor | 20 m, M12 Connector
The ifm O5S200 is a photoelectric sensor with detection range 20 m, electrical connection M12 Connector and IP67 protection.
- Sensor Style: Block
- Detection Type: Through Beam
- Detection Range: 20 m
- Electrical Connection: M12 Connector
- Maximum DC Voltage: 36V
- Light Source: LED
- IP Rating: IP67
- Maximum Current: 200 mA
- Detailed Description
- Specifications
- Downloads
O5 series — Light barriers
High range/scope
Rotatable connector
Ideal for packaging and materials handling technology
Approvals
| Brand | ifm |
| Detection Type | Through Beam |
| Detection Range | 20 m (65.6 ft) |
| Sensor Style | Block |
| Electrical Connection | M12 Connector |
| Light Source | LED |
| Maximum DC Voltage | 36V |
| IP Rating | IP67 |
| Maximum Current | 200 mA |
| Minimum Operating Temperature | -25 °C (-13 °F) |
| Housing Material | Polyamide |
| Maximum Operating Temperature | +60 °C (140 °F) |
