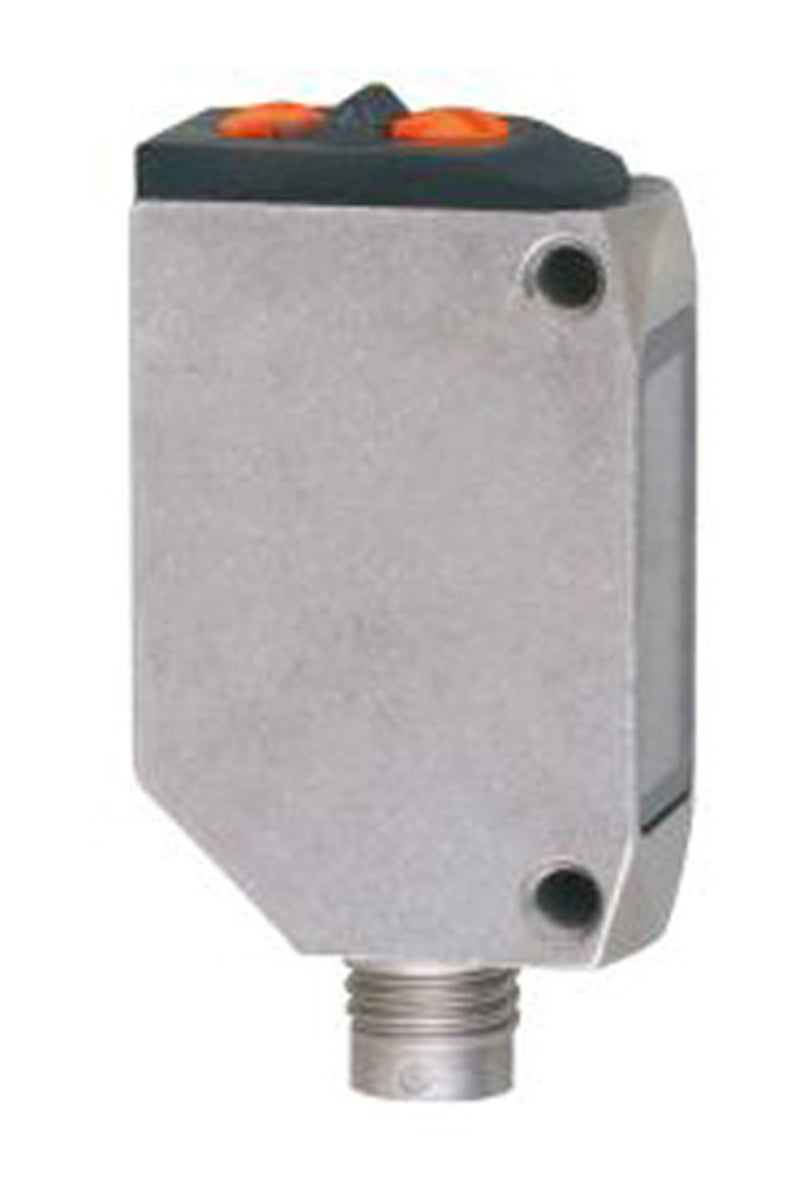

ifm O6H309, Diffuse Photoelectric Sensor, Block Sensor, 2 mm → 200 mm Detection Range IO-LINK

Name: ifm O6H309, Diffuse Photoelectric Sensor, Block Sensor, 2 mm → 200 mm Detection Range IO-LINK
Brand: ifm
SKU: O6H309
Availability: OutOfStock

Part Number : O6H309

Availability: Sold out

Detailed Description
Specifications
Downloads

IFM O6H Block Style Diffuse Photoelectric Sensors

Photoelectric sensors are used where safe and non-contact de-tection of the exact position of objects is required. The material of the objects to be detected is of no importance. Compared to proximity switches photoelectric sensors have a much higher sensing zone.

Diffuse reflective
Background suppression
Adjustable

Brand	ifm
Sensor Style	Block
Detection Type	Diffuse
Detection Range	2 mm → 200 mm
Output Type	PNP NO/NC
Electrical Connection	M8 4 Pin Connector
Maximum DC Voltage	30V
Communication Protocol	IO-LINK
Terminal Type	Cable
Light Source	LED
IP Rating	IP65, IP67, IP68, IP69K
Maximum Current	22 mA
Interface	IO-Link
Minimum Operating Temperature	-25°C
Mounting Type	Cable Mount
Series	O6H
Housing Material	Stainless Steel
Maximum Operating Temperature	+80°C
Standards Met	CE, cULus, EAC, EN 60947-5-2, IEC 61131-9 CDV, UL E010
