ifm O6P307 | Photoelectric Sensor | 0.05 → 5 m, NPN

Name: ifm O6P307 | Photoelectric Sensor | 0.05 → 5 m, NPN
Brand: ifm
SKU: O6P307
Availability: InStock

Part Number : O6P307

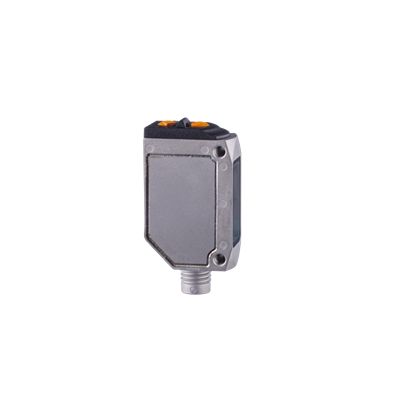

The ifm O6P307 is a photoelectric sensor with detection range 0.05 → 5 m, output type NPN and electrical connection M8 Connector.

Sensor Style: Rectangular
Detection Type: Retro Reflective
Detection Range: 0.05 → 5 m
Output Type: NPN
Electrical Connection: M8 Connector
Switching Mode: Light / Dark switching

Availability: low stock

Detailed Description
Specifications
Downloads

The ifm electronic Retro-reflective sensor designed for precision detection in various applications. This rectangular housing sensor utilizes red light and features a polarisation filter, enabling it to deliver outstanding performance in challenging environments. With an operating voltage range of 10 to 30 DC, it ensures reliable functionality while maintaining a compact design. The sensor's ability to detect objects at distances of up to 5 metres, coupled with adjustable settings, provides excellent flexibility for diverse operational needs. Its robust protection class ratings further enhance durability, making it suitable for harsh industrial conditions.

Features a built in potentiometer for easy sensitivity adjustments
Supports a maximum switching frequency of 1000 Hz ensuring rapid detection
Equipped with short circuit protection for added safety
Compact dimensions facilitate easy integration into tight spaces
Constructed with stainless steel housing and high grade plastics for durability
Comes with a yellow LED for switching status and a green LED for operation indication
Included M8 connector ensures a reliable electrical connection
Compatible with prismatic reflectors enhancing the detection range and effectiveness

Brand	ifm
Sensor Style	Rectangular
Detection Type	Retro Reflective
Detection Range	0.05 → 5 m
Output Type	NPN
Electrical Connection	M8 Connector
Switching Mode	Light / Dark switching
