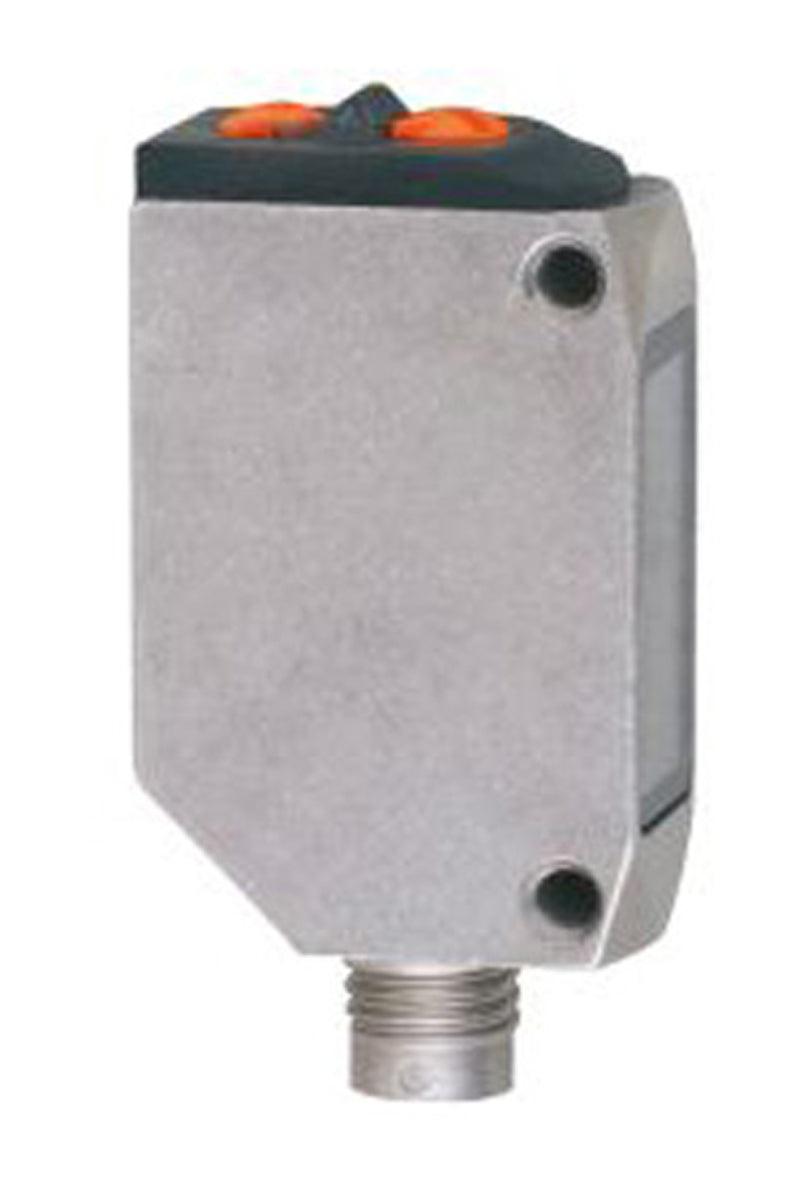

ifm O6P309, Retroreflective Photoelectric Sensor, Block Sensor, 50 mm → 5 m Detection Range IO-LINK

Client Protection

Dedicated Support

Client Protection

Dedicated Support

ifm O6P309, Retroreflective Photoelectric Sensor, Block Sensor, 50 mm → 5 m Detection Range IO-LINK

Name: ifm O6P309, Retroreflective Photoelectric Sensor, Block Sensor, 50 mm → 5 m Detection Range IO-LINK
Brand: ifm
SKU: O6P309
Availability: OutOfStock

Part Number : O6P309

Availability: Sold out

Detailed Description
Specifications
Downloads

IFM O6P Block Style Retro Reflective Photoelectric Sensors

Photoelectric sensors are used where safe and non-contact de-tection of the exact position of objects is required. The material of the objects to be detected is of no importance. Compared to proximity switches photoelectric sensors have a much higher sensing zone.

Retro-reflective
Polarisation filter
Adjustable

Brand	ifm
Sensor Style	Block
Detection Type	Retroreflective
Detection Range	50 mm → 5 m
Output Type	PNP
Electrical Connection	M8 4 Pin Connector
Maximum DC Voltage	30V
Communication Protocol	IO-LINK
Terminal Type	Cable
Light Source	LED
IP Rating	IP65, IP67, IP68, IP69K
Maximum Current	12 mA
Interface	IO-Link
Minimum Operating Temperature	-25°C
Mounting Type	Cable Mount
Housing Material	Stainless Steel
Maximum Operating Temperature	+80°C
Series	O6P
Standards Met	CE, cULus, EAC, EN 60947-5-2, IEC 61131-9 CDV, UL E010

ifm O6P309, Retroreflective Photoelectric Sensor, Block Sensor, 50 mm → 5 m Detection Range IO-LINK

DOWNLOAD CATALOG

ifm O6P309, Retroreflective Photoelectric Sensor, Block Sensor, 50 mm → 5 m Detection Range IO-LINK

IFM O6P Block Style Retro Reflective Photoelectric Sensors
