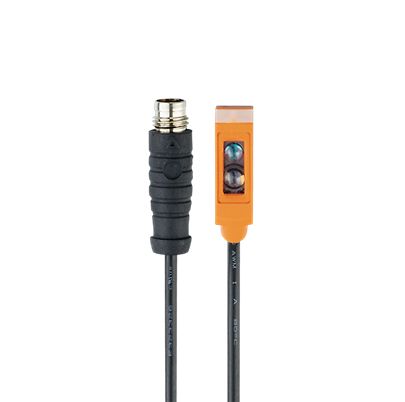

ifm O8P203, Retro Reflective Photoelectric Sensor, Rectangular Sensor, 0.02 → 1.8 m Detection Range

Name: ifm O8P203, Retro Reflective Photoelectric Sensor, Rectangular Sensor, 0.02 → 1.8 m Detection Range
Brand: ifm
SKU: O8P203
Availability: OutOfStock

Part Number : O8P203

Availability: Sold out

Detailed Description
Specifications
Downloads

The ifm electronic Retro-reflective sensor offers precise detection capabilities for a wide array of applications. Designed for versatility, it operates efficiently within an ambient temperature range of -25 to 60°C and boasts a robust IP 65 and IP 67 protection rating, making it ideal for challenging environments. This innovative sensor employs red light for detection, with a maximum range of 1.8 meters when paired with an appropriate prismatic reflector, ensuring reliability in performance. With features such as short-circuit protection and optimal current consumption, it promises to deliver effective operation while conserving energy, making it a valuable addition to any automation system.

Current consumption of 20mA at 24V ensures efficient power usage
NPN electrical design with dark on output function enhances flexibility
Switching frequency of up to 1000Hz allows for rapid response times
Pulsed short circuit protection ensures durability in demanding applications
Showcases an IP 65 and IP 67 protection rating for water and dust resistance
Light spot diameter of 120mm ensures optimal detection coverage
Features a compact rectangular housing
LED indicators provide clear visual feedback for easy operation

Brand	ifm
Sensor Style	Rectangular
Detection Type	Retro Reflective
Detection Range	0.02 → 1.8 m
Output Type	NPN
Switching Mode	Dark Switching
Electrical Connection	M8 Connector
