ifm OG0038 | Photoelectric Sensor | 15 m, Cable

Name: ifm OG0038 | Photoelectric Sensor | 15 m, Cable
Brand: ifm
SKU: OG0038
Availability: InStock

Part Number : OG0038

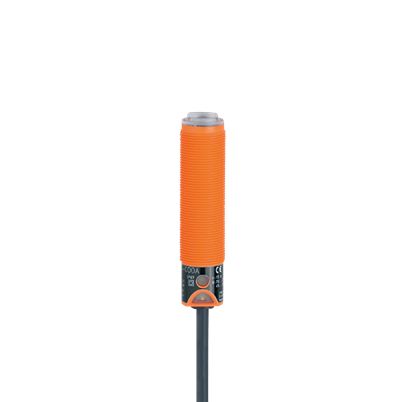

The ifm OG0038 is a photoelectric sensor with detection range 15 m, electrical connection Cable and sensor style Barrel.

Sensor Style: Barrel
Detection Type: Through Beam
Detection Range: 15 m
Electrical Connection: Cable
Switching Mode: Dark Switching

Availability: low stock

Detailed Description
Specifications
Downloads

USB 2.0 Hi-Speed Mini-Module, FTDI Chip

Versions Available:
(730-0142) - USB to Serial/FIFO (Dual) - FT2232H MINI MODULE
(730-0146) - USB to Serial/FIFO (Quad) - FT4232H MINI MODULE
(111-5835) - USB to Serial/FIFO (Dual) - FT2232H-56Q MINI MODULE
(111-5836) - USB to Serial/FIFO (Quad) - FT4232H-56Q MINI MODULE

The ifm electronic Through-beam sensor receiver provides an innovative solution for reliable detection in various applications. Designed for durability and efficiency, this sensor utilises infrared light to operate effectively within a range of up to 15 metres, ensuring robust performance in diverse environments. With an ambient temperature tolerance of -25 to 80 degrees Celsius and an IP67 protection rating, it is suitable for challenging conditions. Its compact threaded housing facilitates easy installation, making it an ideal choice for industrial and commercial use, where precision and safety are paramount. The unit’s advanced features include fast acting miniature fuse protection, enhancing operational reliability and safety.

Infrared light technology enables effective object detection
Range adjustable for versatile application settings
Compact threaded housing allows for simple installation
IP67 protection rating ensures resistance against dust and water ingress
Permanent current rating of 90 mA for reliable operation
Display features include LED indicators for switching status
Miniature fuse protection adds an extra layer of safety
Durable materials like PBT and PMMA ensure longevity and resilience

Brand	ifm
Detection Type	Through Beam
Detection Range	15 m (49.2 ft)
Sensor Style	Barrel
Electrical Connection	Cable
Switching Mode	Dark Switching
