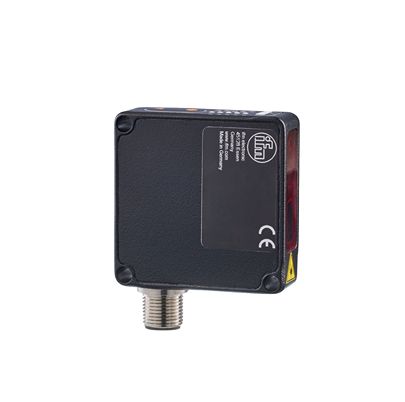

ifm OMH552 | Photoelectric Sensor | 0.05 → 0.2 m, PNP/NPN

Name: ifm OMH552 | Photoelectric Sensor | 0.05 → 0.2 m, PNP/NPN
Brand: ifm
SKU: OMH552
Availability: InStock

Part Number : OMH552

The ifm OMH552 is a photoelectric sensor with detection range 0.05 → 0.2 m, output type PNP/NPN and electrical connection M12 Connector.

Sensor Style: Rectangular
Detection Type: Distance
Detection Range: 0.05 → 0.2 m
Output Type: PNP/NPN
Switching Mode: Light / Dark switching
Electrical Connection: M12 Connector
Communication Protocol: IO-LINK

Availability: low stock

Detailed Description
Specifications
Downloads

The ifm electronic Photoelectric distance sensor offers precise measurement capabilities for a variety of applications. Designed for reliability, this sensor employs red light technology to accurately detect distances ranging from 0.05 to 0.2 metres while ensuring a 10 to 30 V DC operating voltage. Its robust housing, rated IP 65 and IP 67 for protection, allows it to operate effectively in demanding environments. With a superior lifespan of up to 50,000 hours and intelligent features such as IO-Link communication for enhanced monitoring and control, this sensor is a dependable choice for industrial automation tasks.

Compact rectangular design for adaptable installation
Single digital input for straightforward operation
Offers two digital outputs that are parameterisable for custom configurations
Supports a maximum switching frequency of 200 Hz for fast response
Features short circuit and overload protection for enhanced reliability
Temperature compensation ensures accurate readings across varying conditions
IO Link interface facilitates seamless integration into existing systems
LED indicators provide clear visual feedback on operational status
Built to endure harsh environments with high vibration and shock resistance
Complies with extensive safety standards including laser protection class 1

Brand	ifm
Detection Type	Distance
Detection Range	0.05 → 0.2 m
Sensor Style	Rectangular
Output Type	PNP/NPN
Electrical Connection	M12 Connector
Switching Mode	Light / Dark switching
Communication Protocol	IO-LINK
