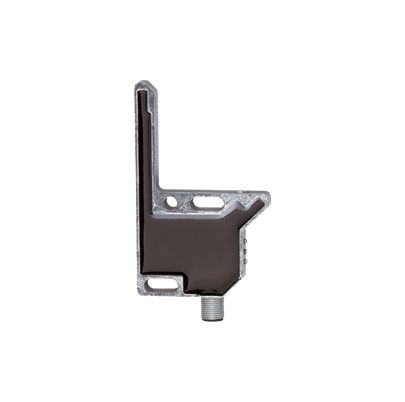

ifm OPL204 | Photoelectric Sensor | PNP, M12 Connector

Name: ifm OPL204 | Photoelectric Sensor | PNP, M12 Connector
Brand: ifm
SKU: OPL204
Availability: InStock

Part Number : OPL204

The ifm OPL204 is a photoelectric sensor with output type PNP, electrical connection M12 Connector and sensor style Fork.

Sensor Style: Fork
Output Type: PNP
Electrical Connection: M12 Connector
Switching Mode: Dark Switching

Availability: low stock

Detailed Description
Specifications
Downloads

The ifm electronic Photoelectric angle sensor offers precision and reliability for various applications requiring accurate detection and monitoring. Designed for environments with an ambient temperature range of -10 to 60°C, this sensor is equipped with red light technology, ensuring effective performance in diverse settings. With features such as a dark-on mode output function and built-in short-circuit and overload protection, it guarantees safety and reliability. This sensor is specifically crafted for easy installation, facilitating seamless integration into existing systems. Its IP67 rating confirms robustness against dust and water, making it ideal for industrial use. The compact design effectively maximises space while ensuring operational efficiency.

Current consumption remains below 45mA promoting energy efficiency
High performance PNP electrical design optimises signal processing
Achieves a maximum voltage drop switch of 2V for effective output
Switching frequency of up to 200 Hz allows for rapid response times
Durable diecast zinc housing and glass lens enhance longevity
Integrated function check output confirms operational integrity
Display status with LED indicators for easy monitoring
Immediate protection features against short circuits enhance safety

Brand	ifm
Sensor Style	Fork
Output Type	PNP
Electrical Connection	M12 Connector
Switching Mode	Dark Switching

ifm OPL204 | Photoelectric Sensor | PNP, M12 Connector
