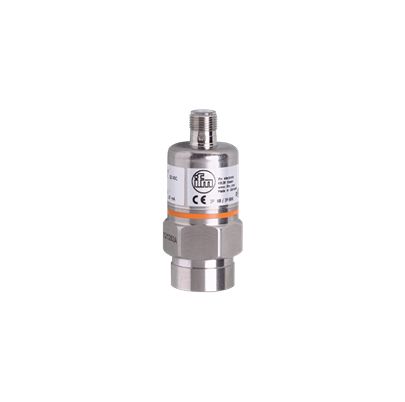

Name: ifm PA9022, PA9 Series Pressure Transmitter, 0bar Min, 100bar Max, 0 - 10 v Output, Relative Reading
Brand: ifm
SKU: PA9022
Availability: OutOfStock

ifm PA9022, PA9 Series Pressure Transmitter, 0bar Min, 100bar Max, 0 - 10 v Output, Relative Reading

Client Protection

Dedicated Support

Client Protection

Dedicated Support

ifm PA9022, PA9 Series Pressure Transmitter, 0bar Min, 100bar Max, 0 - 10 v Output, Relative Reading

Part Number : PA9022

Availability: Sold out

Detailed Description
Specifications
Downloads

The ifm electronic pressure transmitter with a ceramic measuring cell is designed for precise measurement of pressure in both liquids and gases. With a robust construction utilizing stainless steel materials, this device ensures durability and reliability even in challenging environments. Featuring a measuring range from 0 to 100 bar, it provides accurate readings and includes gold-plated contacts for enhanced electrical performance. The transmitter is suitable for industrial applications, accommodating a wide medium temperature range from -25 to 90°C. Its IP 68 and IP 69K protection ratings ensure dependable operation in harsh conditions, while the low current consumption enhances energy efficiency. The easy-to-install design makes it a practical choice for various applications.

Measuring range of 0 to 100 bar, ideal for diverse industrial uses
Ceramic measuring cell technology guarantees high accuracy and reliability
IP 68 and IP 69K protection ratings ensure exceptional resistance to dust and moisture
Gold-plated contacts minimize electrical resistance for optimal performance

Brand	ifm
Pressure Reading Type	Relative
Minimum Pressure Reading	0bar
Maximum Pressure Reading	100bar
Accuracy	± 0.5 %
Output Type	0 - 10 v
Series	PA9

ifm PA9022, PA9 Series Pressure Transmitter, 0bar Min, 100bar Max, 0 - 10 v Output, Relative Reading
