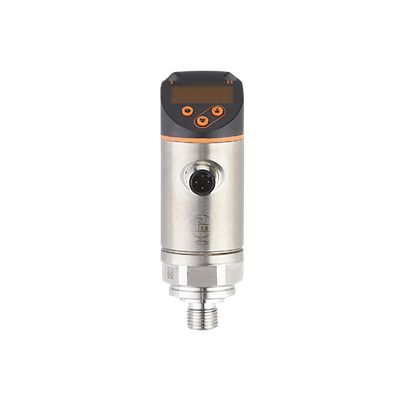

Name: ifm PE2594, PE Series Pressure Sensor, -1bar Min, 10bar Max, Analogue Output, Relative Reading
Brand: ifm
SKU: PE2594
Availability: OutOfStock

ifm PE2594, PE Series Pressure Sensor, -1bar Min, 10bar Max, Analogue Output, Relative Reading

Client Protection

Dedicated Support

Client Protection

Dedicated Support

ifm PE2594, PE Series Pressure Sensor, -1bar Min, 10bar Max, Analogue Output, Relative Reading

Part Number : PE2594

Availability: Sold out

Detailed Description
Specifications
Downloads

The ifm electronic pressure sensor with display is engineered for precision measurement in industrial applications involving liquids and gases. Featuring a four-digit alphanumeric display, this sensor not only provides clear readings but also facilitates easy programming through its dedicated button. With a robust construction that includes gold-plated contacts and a finely crafted ceramic-capacitive pressure measuring cell, it guarantees reliability in challenging environments. The sensor supports a diverse range of outputs, including digital and analogue, ensuring compatibility with various systems, while its IP65/IP67 protection class assures durability against dust and moisture. Designed for efficiency, the product also incorporates an integrated watchdog and reverse polarity protection, enhancing operational safety.

Four-digit red/green alphanumeric display for clear visual outputs
Supports multiple output types, including switching, analogue, and IO-Link
Compact and robust design with cylindrical stainless steel housing
Wide measuring range from -1 to 10 bar, suitable for various applications

Brand	ifm
Pressure Reading Type	Relative
Minimum Pressure Reading	-1bar
Maximum Pressure Reading	10bar
Accuracy	± 0.5
Output Type	Analogue
Series	PE
