ifm PG2789, PG Series Pressure Sensor, -0.005bar Min, 0.1bar Max, Analogue Output, Relative Reading

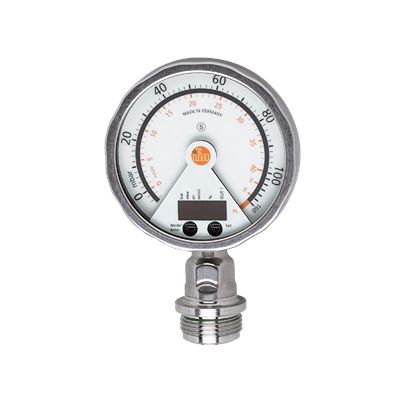

The PG2789 electronic pressure sensor from ifm with protection rating IP67/IP69K convinces with its hygienic and front-flush design with an analogue display with good readability. The display can be rotated by 350° and has an LED bar graph for switch point indication. The PG2789 electronic pressure sensor has one positive switching output that can be programmed via the LED indication and the optical touch field and one analogue output (4-20 mA (scalable)). The unit has a high accuracy (0.2 %) and an electronic temperature compensation. The measuring range is -15.0-100 mbar. The 4-digit alphanumeric display as well as the status LEDs help make handling easy and intuitive. The PG2789 electronic pressure sensor with M12 connector and G 1/2 process connection is suitable for pressure monitoring and level measurement in the food and pharmaceutical industries. Photo: PG2794
