Name: ifm PI2305, PI2 Series Pressure Sensor, -1bar Min, 4bar Max, 4 - 20 mA, PNP/NPN Output, Relative, Vaccum Reading
Brand: ifm
SKU: PI2305
Availability: OutOfStock

ifm PI2305, PI2 Series Pressure Sensor, -1bar Min, 4bar Max, 4 - 20 mA, PNP/NPN Output, Relative, Vaccum Reading

Client Protection

Dedicated Support

Client Protection

Dedicated Support

ifm PI2305, PI2 Series Pressure Sensor, -1bar Min, 4bar Max, 4 - 20 mA, PNP/NPN Output, Relative, Vaccum Reading

Part Number : PI2305

Availability: Sold out

Detailed Description
Specifications
Downloads

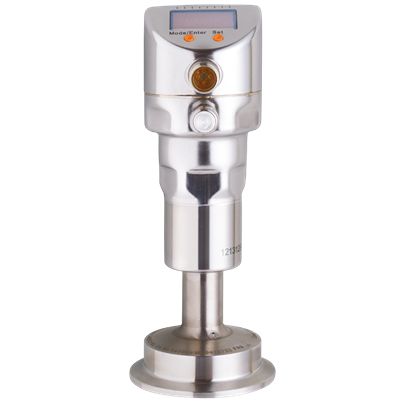

The ifm electronic flush pressure sensor with display is a highly reliable device designed for the food and beverage industry, ensuring precise measurement and monitoring of pressure in viscous media and liquids. With an operational range of -1 to 4 bar and robust features including a 4-digit alphanumeric display and status LEDs, this sensor enables straightforward programming and real-time viewing of measurements. The sensor is engineered for both 2-wire and 3-wire configurations, providing versatility in installation. Its stainless steel construction, combined with gold-plated contacts, guarantees durability and hygienic performance across various applications, making it an essential tool for enhancing process efficiency and safety in demanding environments.

Highly accurate pressure measurement with a switch point accuracy of less than ±0.2%
Designed for flush mounting, suitable for hygienic applications in the food and beverage sector
Comes with an intuitive 4-digit alphanumeric display for clear viewing of measurements
Integrated watchdog and reverse polarity protection ensure operational safety and reliability

Brand	ifm
Pressure Reading Type	Relative, Vaccum
Minimum Pressure Reading	-1bar
Maximum Pressure Reading	4bar
Accuracy	± 0.2 %
Output Type	4 - 20 mA, PNP/NPN
Series	PI2
