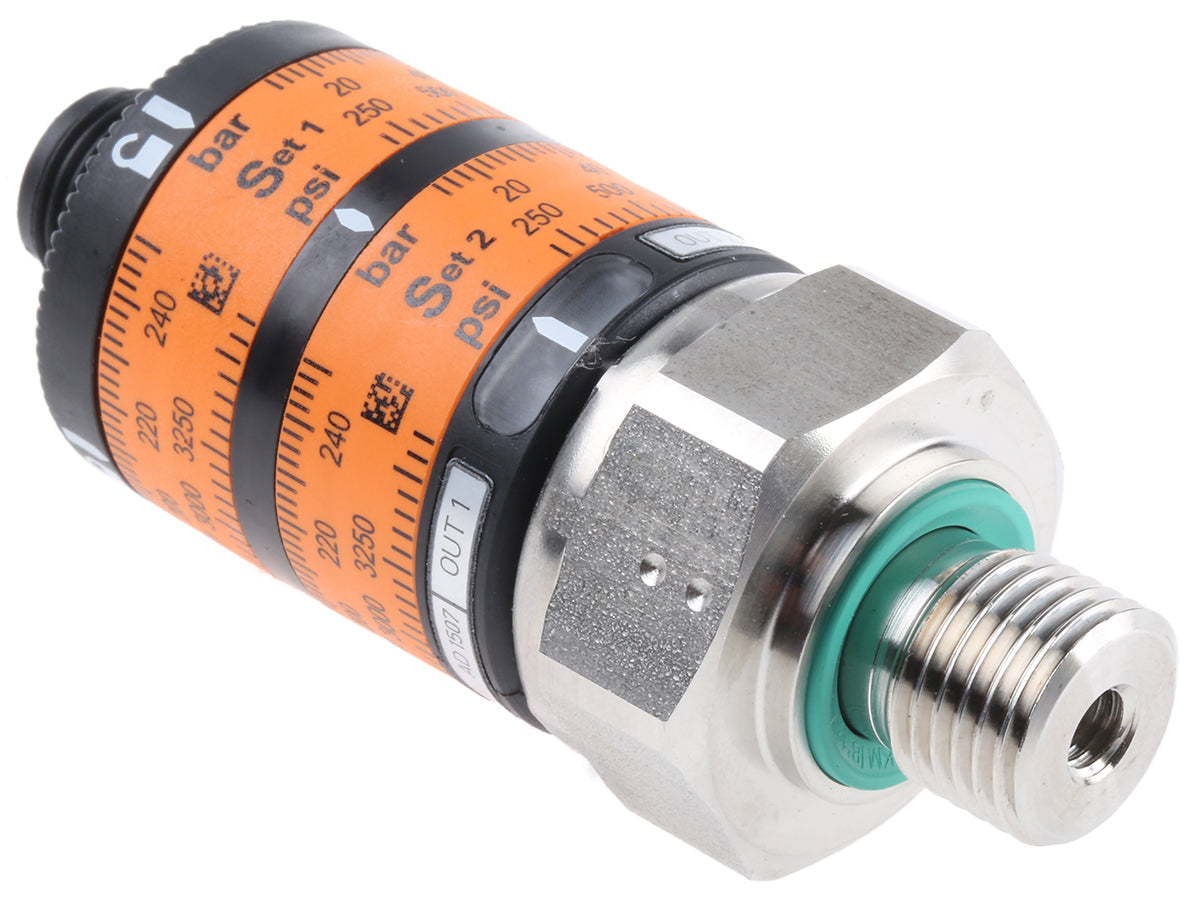

Name: ifm PK7521, Pressure Switch, 0bar Min, 250bar Max, 2NO Output, Relative Reading
Brand: ifm
SKU: PK7521
Availability: InStock

ifm PK7521, Pressure Switch, 0bar Min, 250bar Max, 2NO Output, Relative Reading - generaltechuae

Client Protection

Dedicated Support

Client Protection

Dedicated Support

ifm PK7521, Pressure Switch, 0bar Min, 250bar Max, 2NO Output, Relative Reading

Part Number : PK7521

Availability: low stock

Detailed Description
Specifications
Downloads

Dual Output Pressure Switch

Efector 500 range of Pressure Sensors.

Electronic pressure monitor PK75
Quick disconnect
Process connection G1/4 A / M25 I
2 switching outputs
Electrical design: DC PNP
Output: 2 normally open
Switching status 2xLED (yellow)
Non latching short circuit protection
Overload and reverse polarity protection
Operating temperature: -25 → 80 °C
IP rating: IP67

Approvals

UL, CE

Brand	ifm
Pressure Reading Type	Relative
Minimum Pressure Reading	0bar
Maximum Pressure Reading	250bar
Accuracy	<±2.5 %
Output Type	2NO
Media Measured	Gas, Liquid
Process Connection	G1/4
Electrical Connection	M12 Connector
Maximum Current	500 mA
Supply Voltage	9.6 → 32 V dc
Housing Material	FPM, PBT, PC, Stainless Steel
Maximum Operating Temperature	+80°C
Minimum Operating Temperature	-25°C
IP Rating	IP67
