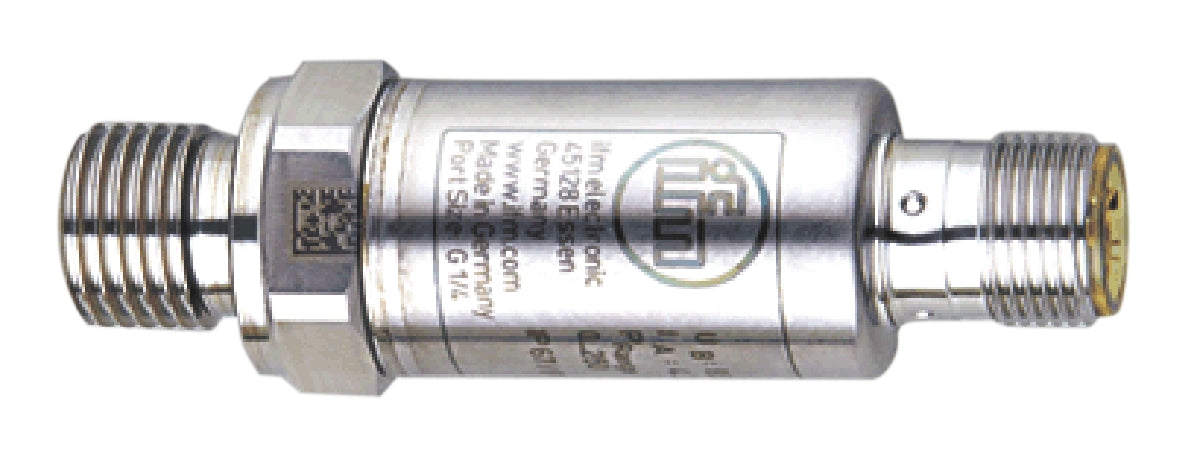

ifm PU5401, Pressure Sensor, 0bar Min, 250bar Max, Analogue Output, Relative Reading

Part Number : PU5401

Availability: Sold out

Detailed Description
Specifications
Downloads

PT54 & PU5 IFM Pressure Sensors

This range of IFM electronic pressure sensors are suitable for the detection of relative pressure liquids and gases of the fluid group 2 (according to Article 9 of the Pressure Equipment Directive). The sensors are available with different pressure ratings and measuring ranges to suit a number of industrial applications.

IP 67 / IP 69K
Analogue output
0-10 V analogue
Reverse polarity protection
Overload Protection
Short-circuit proof

Brand	ifm
Pressure Reading Type	Relative
Minimum Pressure Reading	0bar
Maximum Pressure Reading	250bar
Accuracy	±0.5 %
Output Type	Analogue
Media Measured	Gas, Liquid
Process Connection	G1/4
Analogue Output	0 → 10 V
Electrical Connection	M12 Connector
Response Time	1 ms
Supply Voltage	16 → 36 V dc
Housing Material	Stainless Steel
Minimum Operating Temperature	-40°C
IP Rating	IP67, IP69K
Maximum Operating Temperature	+90°C
