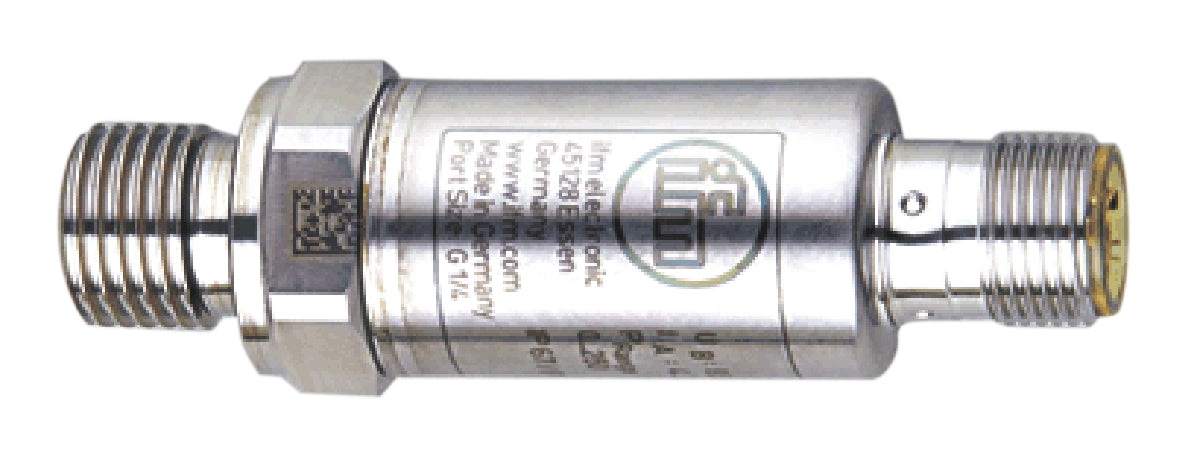

Name: ifm PU5402, Pressure Sensor, 0bar Min, 100bar Max, Analogue Output, Relative Reading
Brand: ifm
SKU: PU5402
Availability: OutOfStock

ifm PU5402, Pressure Sensor, 0bar Min, 100bar Max, Analogue Output, Relative Reading

Client Protection

Dedicated Support

Client Protection

Dedicated Support

ifm PU5402, Pressure Sensor, 0bar Min, 100bar Max, Analogue Output, Relative Reading

Part Number : PU5402

Availability: Sold out

Detailed Description
Specifications
Downloads

PT54 & PU5 IFM Pressure Sensors

This range of IFM electronic pressure sensors are suitable for the detection of relative pressure liquids and gases of the fluid group 2 (according to Article 9 of the Pressure Equipment Directive). The sensors are available with different pressure ratings and measuring ranges to suit a number of industrial applications.

IP 67 / IP 69K
Analogue output
0-10 V analogue
Reverse polarity protection
Overload Protection
Short-circuit proof

Brand	ifm
Pressure Reading Type	Relative
Minimum Pressure Reading	0bar
Maximum Pressure Reading	100bar
Accuracy	±0.5 %
Output Type	Analogue
Media Measured	Gas, Liquid
Process Connection	G1/4
Analogue Output	0 → 10 V
Electrical Connection	M12 Connector
Response Time	1 ms
Supply Voltage	16 → 36 V dc
Housing Material	Stainless Steel
Maximum Operating Temperature	+90°C
Minimum Operating Temperature	-40°C
IP Rating	IP67, IP69K
