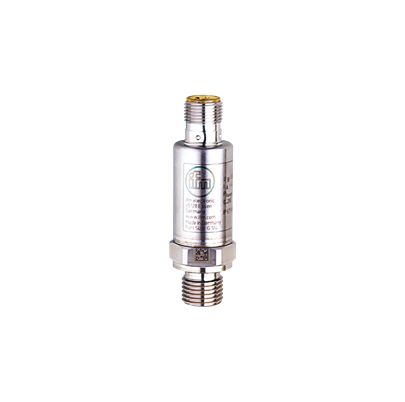

ifm PU8523, PU Series Pressure Transmitter, 0bar Min, 60bar Max, Analogue Output, Relative Reading

Client Protection

Dedicated Support

Client Protection

Dedicated Support

ifm PU8523, PU Series Pressure Transmitter, 0bar Min, 60bar Max, Analogue Output, Relative Reading

Name: ifm PU8523, PU Series Pressure Transmitter, 0bar Min, 60bar Max, Analogue Output, Relative Reading
Brand: ifm
SKU: PU8523
Availability: OutOfStock

Part Number : PU8523

Availability: Sold out

Detailed Description
Specifications
Downloads

The ifm electronic pressure transmitter delivers precise measurements for both liquids and gases within mobile applications. Designed for reliable performance, it operates across a measuring range of 0 to 60 bar, ensuring accurate readings even in challenging environments. The device boasts a robust build with stainless steel housing, making it suitable for demanding conditions while maintaining IP 67 and IP 69K protection ratings. With a low current consumption of under 12 mA and a wide operating voltage range of 8 to 32 V DC, it can seamlessly integrate into various systems. This transmitter promises not only versatility and durability but also exceptional accuracy and stability, marking it as an indispensable tool for precision applications.

Operates effectively in a temperature range of -40 to 125 °C
Provides an analogue voltage output with a range of 0.5 to 4.5 V
Offers short-circuit proof and overload protection for enhanced safety
Achieves long-term stability with deviations as low as ± 0.1% over six months

Brand	ifm
Pressure Reading Type	Relative
Minimum Pressure Reading	0bar
Maximum Pressure Reading	60bar
Accuracy	± 0.8
Output Type	Analogue
Series	PU
