ifm PU8760, PU Series Pressure Transmitter, 0bar Min, 600bar Max, Analogue Output, Relative Reading

Name: ifm PU8760, PU Series Pressure Transmitter, 0bar Min, 600bar Max, Analogue Output, Relative Reading
Brand: ifm
SKU: PU8760
Availability: OutOfStock

Part Number : PU8760

Availability: Sold out

Detailed Description
Specifications
Downloads

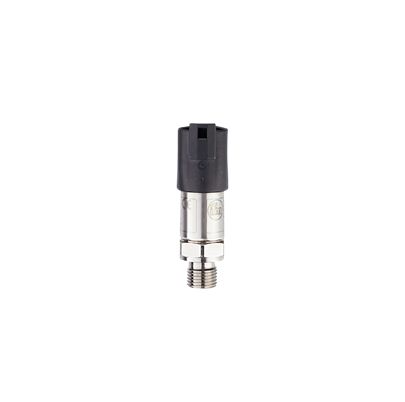

The ifm electronic pressure transmitter is engineered for precise pressure measurement in both liquid and gas applications. Designed to withstand extreme conditions, it features a robust metallic thin film cell measuring range of 0 to 600 bar, ensuring reliability across various environments. This versatile device operates within an ambient temperature range of -40 to 100 °C and is rated IP 67 and IP 69K for protection against dust and water. Ideal for mobile applications, the pressure transmitter is built for rigorous use, making it a reliable choice for industrial settings, with features such as reverse polarity protection and short-circuit proof output. The user-friendly design allows for easy integration and operation, enhancing measurement processes significantly.

Measuring range of 0 to 600 bar, suitable for various pressure needs
Operates in ambient temperatures from -40 to 100 °C, ensuring adaptability
IP 67 and IP 69K rating protects against dust and water ingress
Includes one analogue output with a voltage output range of 0.5 to 4.5 V for versatile connectivity

Brand	ifm
Pressure Reading Type	Relative
Minimum Pressure Reading	0bar
Maximum Pressure Reading	600bar
Accuracy	± 0.8
Output Type	Analogue
Series	PU
