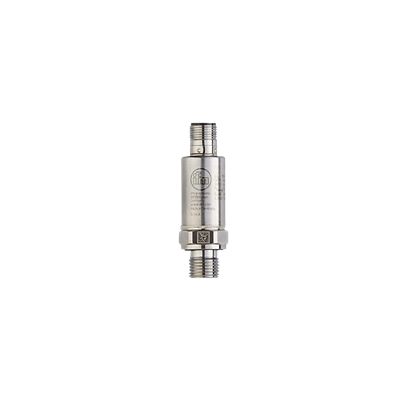

Name: ifm PV7003, PV Series Pressure Switch, -1bar Min, 25bar Max, PNP/NPN Output, Relative, Vaccum Reading
Brand: ifm
SKU: PV7003
Availability: OutOfStock

ifm PV7003, PV Series Pressure Switch, -1bar Min, 25bar Max, PNP/NPN Output, Relative, Vaccum Reading

Client Protection

Dedicated Support

Client Protection

Dedicated Support

ifm PV7003, PV Series Pressure Switch, -1bar Min, 25bar Max, PNP/NPN Output, Relative, Vaccum Reading

Part Number : PV7003

Availability: Sold out

Detailed Description
Specifications
Downloads

The ifm electronic pressure switch with IO-Link is meticulously designed for reliable pressure measurement in both industrial liquids and gases. Equipped with a metallic thin-film cell measuring range from -1 to 25 bar, it ensures precision in various applications. The device features a robust construction with an IP67 and IP69K rating, making it suitable for harsh environments. With built-in reverse polarity protection and short-circuit protection, it secures system integrity while delivering real-time data through its IO-Link communication interface, facilitating efficient monitoring and configuration. Ideal for demanding applications, this pressure switch exemplifies durability and performance excellence.

Compact cylindrical housing allows for easy integration into existing processes
Working temperature range from -40 to 90 °C ensures adaptability across diverse operational conditions
Integrated shock and vibration resistance standards provide robustness against mechanical stresses
Offers a dual digital output option configurable for normally open or normally closed operations

Brand	ifm
Pressure Reading Type	Relative, Vaccum
Minimum Pressure Reading	-1bar
Maximum Pressure Reading	25bar
Accuracy	± 0.5
Output Type	PNP/NPN
Series	PV

ifm PV7003, PV Series Pressure Switch, -1bar Min, 25bar Max, PNP/NPN Output, Relative, Vaccum Reading

DOWNLOAD CATALOG
