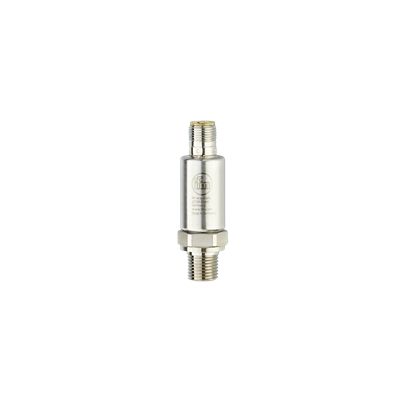

Name: ifm PV7704, PV Series Pressure Switch, -0.1MPa Min, 1MPa Max, PNP/NPN Output, Relative, Vaccum Reading
Brand: ifm
SKU: PV7704
Availability: OutOfStock

ifm PV7704, PV Series Pressure Switch, -0.1MPa Min, 1MPa Max, PNP/NPN Output, Relative, Vaccum Reading

Client Protection

Dedicated Support

Client Protection

Dedicated Support

ifm PV7704, PV Series Pressure Switch, -0.1MPa Min, 1MPa Max, PNP/NPN Output, Relative, Vaccum Reading

Part Number : PV7704

Availability: Sold out

Detailed Description
Specifications
Downloads

The ifm electronic pressure switch with IO-Link functionality is engineered for precise pressure measurement in industrial applications. Its robust metallic thin film cell ensures accuracy across a measuring range of -100 to 1000 kPa. Designed to withstand extreme conditions, it operates within a medium temperature range of -40 to 90 °C and boasts a remarkable vacuum resistance of up to -1000 mbar. The switch features a user-friendly interface for digital outputs, enabling seamless integration within control systems. With a durable housing that meets IP 67 and IP 69K ratings, this pressure switch guarantees high reliability and long-term performance, making it an ideal choice for applications involving liquids and gases.

Equipped with two digital outputs, allowing flexible configuration of output signals
High precision with a switch point accuracy of less than ±0.5% of the span, ensuring reliable operations
Supports IO-Link communication for easy integration and advanced data monitoring
Features a built-in short-circuit and overload protection for enhanced safety

Brand	ifm
Pressure Reading Type	Relative, Vaccum
Minimum Pressure Reading	-0.1MPa
Maximum Pressure Reading	1MPa
Accuracy	± 0.5
Output Type	PNP/NPN
Series	PV
