ifm SV5151, SV Series Vortex Flow Meter Flow Meter for Water, 1.8 l/min Min, 32 L/min Max

Name: ifm SV5151, SV Series Vortex Flow Meter Flow Meter for Water, 1.8 l/min Min, 32 L/min Max
Brand: ifm
SKU: SV5151
Availability: OutOfStock

Part Number : SV5151

Availability: Sold out

Detailed Description
Specifications

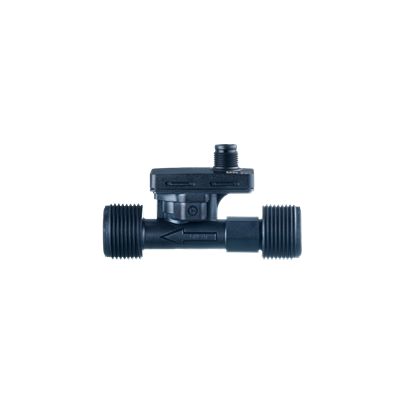

The ifm electronic vortex flow meter is designed for precise measurement of fluid flow in industrial applications. With a measuring range of 1.8 to 32 l/min, this state-of-the-art device utilizes vortex measuring technology to deliver reliable flow data. Featuring a robust design, it is suitable for ultra-pure water and can withstand medium temperatures of up to 125°C. With gold-plated contacts for enhanced durability and a protective IP 65 rating, the flow meter ensures optimal performance even in challenging environments. This device promises accuracy and repeatability, making it an essential tool for process monitoring and control.

Operates within a voltage range of 8 to 33 DC, ensuring versatility across various systems
Minimal current consumption of less than 5 mA enhances energy efficiency
Provides a single analogue output, facilitating easy integration into existing systems
Accurate flow measurements with less than 1% MEW deviation at low flow rates

Brand	ifm
Media Monitored	Water
Device Type	Vortex Flow Meter
Minimum Flow Rate	1.8 l/min
Maximum Flow Rate	32 L/min
Supply Voltage	33 V dc
Series	SV
