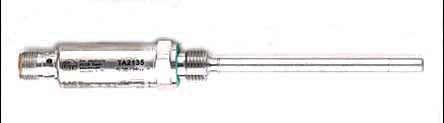

ifm TA2145, PT1000 RTD Sensor, 6mm Dia, 150mm Long, 4 Wire, G1/4, +150°C Max

Name: ifm TA2145, PT1000 RTD Sensor, 6mm Dia, 150mm Long, 4 Wire, G1/4, +150°C Max
Brand: ifm
SKU: TA2145
Availability: InStock

Part Number : TA2145

Availability: low stock

Detailed Description
Specifications
Downloads

ifm Electronic TA Series Temperature Transmitter

Ifm Electronic TA series temperature sensor is a compact universal transmitter with a 4 mA to 20 mA current output. The TA sensors Pt1000 measuring element achieves high precision with scalable parameters that can bet set via an integrated IO-Link interface.

Features and Benefits

IO-Link interface
LED status indicator
Fast response time
Pt1000, class A measuring element
High grade 316 stainless steel
IP69K Rated

Brand	ifm
Sensor Type	PT1000
Probe Length	150mm
Probe Diameter	6mm
Minimum Temperature Sensed	-50°C
Maximum Temperature Sensed	+150°C
Termination Type	M12 Connector
Probe Material	Stainless Steel
Process Connection	G1/4
Interface	IO-Link
Number Of Wires	4
Response Time	3 s
