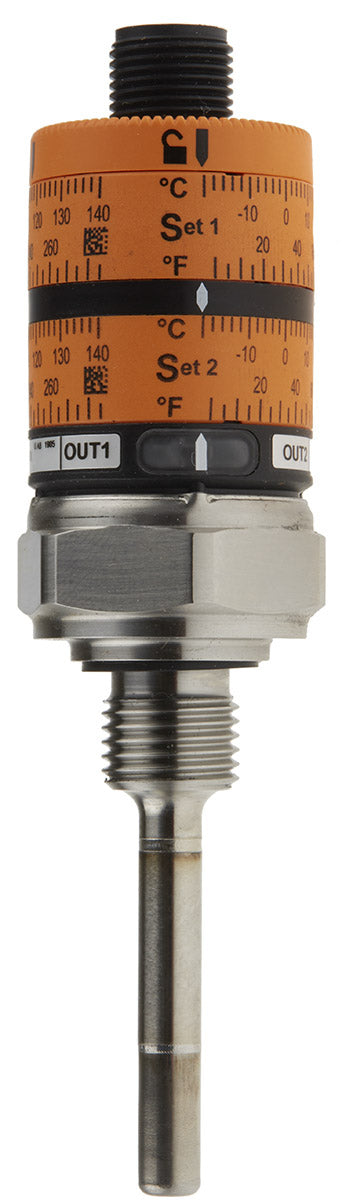

Name: ifm TK7110, PT1000 RTD Sensor, 6mm Dia, 50mm Long, 4 Wire, G1/4, ±0.1 °K +145°C Max
Brand: ifm
SKU: TK7110
Availability: OutOfStock

ifm TK7110, PT1000 RTD Sensor, 6mm Dia, 50mm Long, 4 Wire, G1/4, ±0.1 °K +145°C Max

Client Protection

Dedicated Support

Client Protection

Dedicated Support

ifm TK7110, PT1000 RTD Sensor, 6mm Dia, 50mm Long, 4 Wire, G1/4, ±0.1 °K +145°C Max

Part Number : TK7110

Availability: Sold out

Detailed Description
Specifications

ifm electronic Sensor

The ifm electronic 4 wire PNP RTD switch sensor is a platinum resistance temperature sensor. It has a 50mm long probe and a diameter of 6mm. It is easy to handle due to the two radial setting rings on the sensor. This enables quick and precise setting of the switch points, without system temperature being applied. The mechanical locking prevents unintentional maladjustment of the sensor.

Features and Benefits

• 1s(T05), 3s(T09) response time
• Compact in dimensions
• Good response for dynamics and very short ’power on' delay time
• Mechanical locking prevents inadvertent switch point manipulation
• Service temperature ranges between -40°C and 145°C
• Setting of the switch points without system temperature being applied
• Simple switch point setting
• Two complementary switching outputs with adjustable hysteresis

Applications

• Automobiles
• Communication and instrumentation
• Computers
• Industrial electronics

Certifications

• CE certified
• CULus listed
• DIN EN60068-2-6
• DIN EN61000-4-2
• DIN EN61000-4-4
• DIN IEC 68-2-27
• EN61000-4-3
• EN61000-4-6
• IP67 rating
• UL listed

Brand	ifm
Sensor Type	PT1000
Probe Length	50mm
Probe Diameter	6mm
Minimum Temperature Sensed	-40°C
Maximum Temperature Sensed	+145°C
Termination Type	M12 Connector
Probe Material	Stainless Steel
Process Connection	G1/4
Number Of Wires	4
Accuracy	±0.1 °K
Response Time	3 s
