ifm TT2081, PT100 Temperature Probe, 10mm Dia, 260mm Long, Clamp Adapter, ± 0.15 +150°C Max

Name: ifm TT2081, PT100 Temperature Probe, 10mm Dia, 260mm Long, Clamp Adapter, ± 0.15 +150°C Max
Brand: ifm
SKU: TT2081
Availability: OutOfStock

Part Number : TT2081

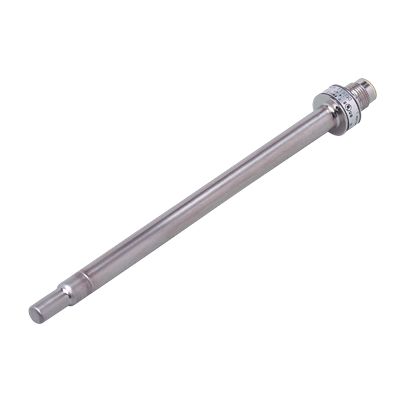

The TT2081 Pt100 immersion probe from ifm is a resistance thermometer that carries out precise measurements in a temperature range from -40-150 °C. The high-grade stainless steel housing with high protection rating IP68/IP69K has an installation length of 260 mm. The robust sensor probe has a diameter of 10 mm. Thanks to the latest technologies and a thin sensor tip the TT2081 Pt100 screw-in sensor features extremely fast response times of T05 = 1 s and T09 = 3 s. The long life and the high pressure rating for individual applications distinguish this resistance thermometer. The TT2081 Pt100 immersion probe with M12 connector is ideal for temperature measurements in industrial applications in factory automation, e.g. in hydraulic power packs.

Availability: Sold out

Detailed Description
Specifications
Features
Downloads

The ifm electronic temperature probe sensor is engineered to deliver precise temperature measurements in both liquids and gases, making it ideal for a range of industrial applications. With a measuring range from -40°C to 150°C, this reliable sensor features a sturdy stainless steel construction, ensuring high durability and resistance to extreme conditions. The sensor's compact design includes a clamp adapter with a diameter of 10 mm, allowing for seamless integration into existing systems. Its gold-plated contacts enhance performance and reliability, providing accurate readings while ensuring long-lasting functionality. Designed to operate effectively in ambient temperatures between -25°C and 80°C and with a storage temperature capacity of -40°C to 100°C, this product is a robust solution for all your temperature monitoring needs.

Measures temperatures from -40°C to 150°C (-40°F to 302°F), catering to diverse applications
Constructed from stainless steel for optimum durability and corrosion resistance
Includes a clamp adapter for easy installation and integration into various systems
Features gold-plated contacts to enhance accuracy and reliability of readings

Brand	ifm
Sensor Type	PT100
Probe Length	260mm
Probe Diameter	10mm
Minimum Temperature Sensed	-40°C
Maximum Temperature Sensed	+150°C
Process Connection	Clamp Adapter
Accuracy	± 0.15

Precise temperature measurement in containers, tanks and pipes
For the connection to an evaluation unit
Very short response time for use in processes with fast temperature fluctuations
Robust stainless steel housing with high protection rating and high pressure resistance
Variable process connection using adapters
